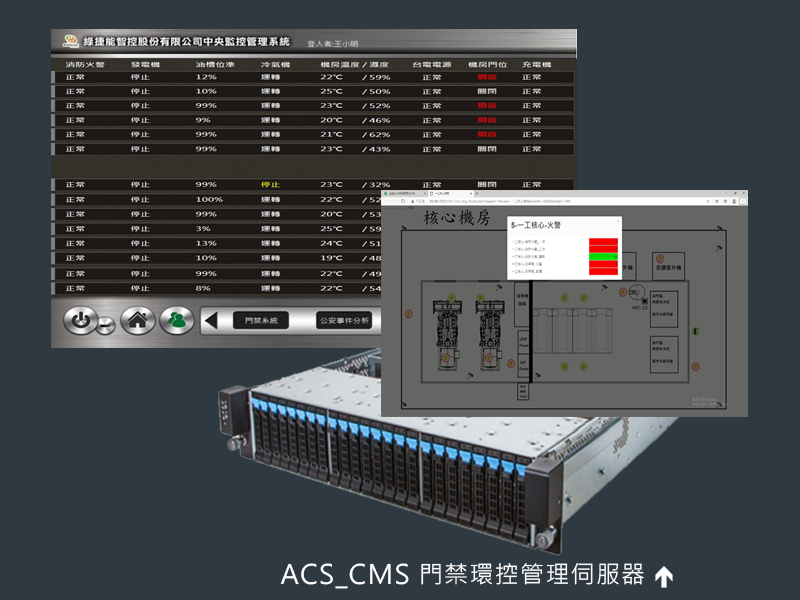

ACS_CMS Intelligence Access Control Management Server

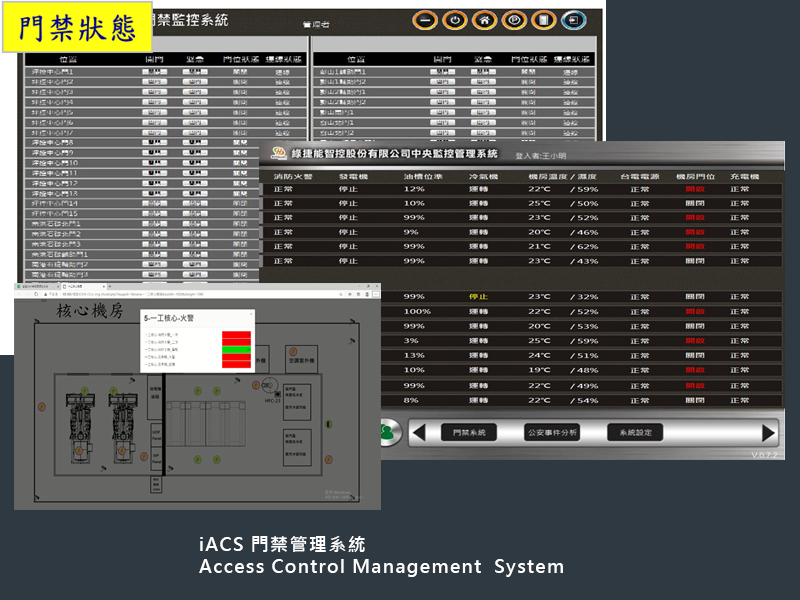

Intelligence Access Control System(iACS)
2.Supports expanding and integrating event-triggered linked cameras, as well as I/O linked detection reception control and scheduled management with automatic linked control management functions (e.g., temperature and humidity threshold-triggered activation of cooling fans or heaters).
3.It has the ability to import and set up various access control information (employees/vendors/VIPs/temporary visitors), and can provide multi-point, multi-location personnel access control management and environmental monitoring management applications for factory areas, schools, logistics warehouses, and decentralized multi-point chain stores.
4.It integrates digital meter information for electricity consumption management and combines it with on-site production line power consumption detection analysis for management.
5.Expands and integrates with video recording systems, combining HIPOWER AI deep learning recognition core to create a physical monitoring system integrated with virtual image electronic fencing detection function, providing higher-precision recognition management.
6.The system has integrated intelligent environmental monitoring and event push notification management mechanisms, combined with LINE group notifications that include event information and links for viewing event photos or pre- and post-event images.
7.Actively detects the operating status of all equipment and receives relevant monitoring thresholds, and establishes individual monitoring data thresholds for abnormal notification, displaying them on an electronic map with pop-up surrounding images on the platform. It can also be combined with Line notification group management.
8.Supports remote expansion with network-controlled I/O detection reception control management applications, for remote trigger switch control or scheduled management settings, such as light scheduling control or garden watering control management applications.
9.Equipped with HIPOWER's backend cloud management system platform, it can perform remote multi-location access data synchronization and update management, as well as retrieval and query applications.
10.HIPOWER provides original factory technical services, and after-sales service can provide online free remote system update services.
Graphical User Interface (GUI)
The system provides password editing functionality, enabling unified account and password management with the central computer system's single sign-on software. This includes permission levels, operator passwords, and name settings.Can select any camera included in the automatic event detection system within the tunnel to perform the following monitoring/operation and querying functions
(A) Query Display
a. Directly access stored event messages and event footage.
b. Display event messages and event footage reported by the video analyzer.
c. Monitor the live feed from the camera.
(B) Information Recording Time Setting
a. Set from 1 minute to 3 minutes before the event occurs.
b.Set for up to 4 minutes.。
(C) System Parameter Settings
a. All detection items can be enabled, disabled, or have detection parameters modified by the video event detection server.
b. For individual camera input ports, configure image recognition parameters.
Generate JSON files for the following real-time event data for retrieval by the central computer system of the cloud-based project
Provide event categories1- Vehicle idle detection.
2- Pedestrian detection.
3- Debris detection.
4- Vehicle wrong-way detection.
5- Visibility (smoke/fog) detection.
6- Motorcycle detection.
Provide event time: Day, hour, minute, second.
Event Alert Functionality
It can display real-time event messages and event image screens reported proactively, and issue audible alarms and visual alerts to notify operators to monitor the event screen. The activation or deactivation of the audible alarm can be configured.The event location should be marked on the real-time image screen for the convenience of operators.
Events detected after image recognition analysis based on deep learning are categorized primarily. Cameras reporting the same alert for the same event are viewed in the same category. After reviewing alerts for the same event, they will be automatically consolidated under one event.
Image Storage Functionality
It supports recording each event for 4 minutes, up to 10 events per camera per day, and can retain them for 90 days.Store event videos in a format of 1280X720 pixels, color, at a minimum of 30 frames per second (FPS), including H.265 and H.264 compression formats. The system supports single-frame playback.
The event recording image screen should indicate the event location.
Configure the storage path for recording images; the system can connect to network storage media.
Communication Loop Fault Detection Functionality
If there is a communication interruption in the communication loop of the image analyzer, the system will automatically display and record the disconnection alarm message.Data Recovery Functionality
When the connection with the image analyzer is restored after a disconnection, the system will automatically replenish the event data and images stored by the image analyzer during the interruption period.Management Functions
Can set the year, month, day, hour, minute, and second data.Can view the current time of the remote image analyzer.
Can view the equipment number of the remote image analyzer.
Can view the software version data of the remote image analyzer.
Can view the real-time hardware status of the remote image analyzer, and can display messages about camera image loss.

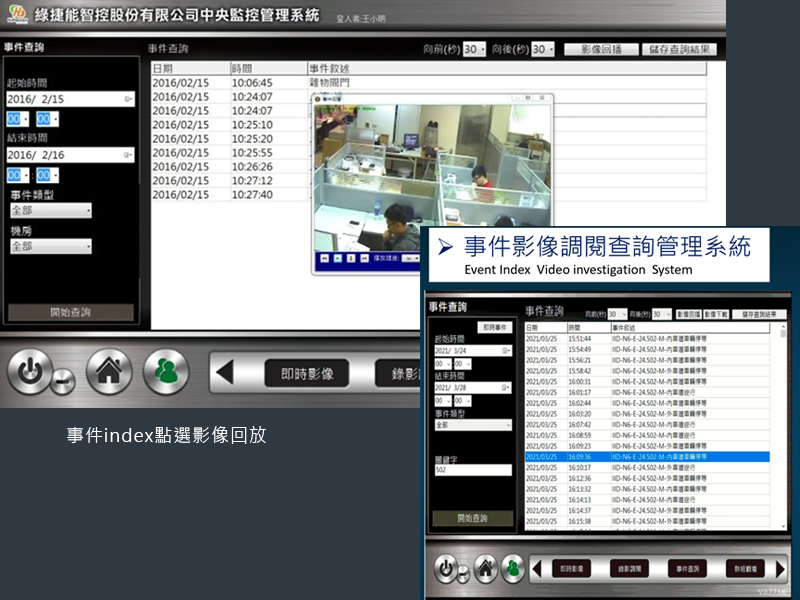

Event Query Functionality
Can display all event records within 180 days.Can perform event queries based on criteria such as date, time, event location, camera number, camera name, and event category. The query data can be exported and saved as Word or Excel files for printing.
Each event message can be linked to the corresponding event image, and the event image will indicate its location.
Event Statistics
Can provide graphical statistical analysis based on dates, individual tunnels, and event categories.Users can choose from various types of graphs such as bar charts, line charts, stacked bar charts, horizontal bar charts, pie charts, or donut charts to display suitable graphics and statistical values.
False Alarm Reporting
Personnel can review event alerts and report any errors they find (included in false alarm statistical analysis).It includes false alarm statistical analysis (camera counts, major time periods, etc.).
False alarm data will be aggregated and stored for further improvement of the deep learning model.
XML Files Generated Every Minute for Retrieval by the Central Computer System
Analyzer Hardware Status (Normal/Abnormal).Analyzer Connection Status (Connected/Disconnected).
Camera Connection Status (Connected/Disconnected), Abnormal Events of Image Loss, and Recording Status, etc.
Operating Status of Hardware Devices (Including Servers), including device disconnection, disk failure, abnormal power supply, etc.
Information Security
HiPower, a proprietary brand, provides GreenJet's original factory-authorized certification documents.All events and image storage in the system cannot be deleted or tampered with, even by the highest-level administrator.
It possesses an operation log with non-repudiation, which cannot be deleted or modified without authorization.
| Operating System | Central Processing Unit | Memory | Storage | Disk Controller | Transmission Interface Unit | Cooling Fan | LCD Panel Cover | Other Management Features | Power Supply | Casing or Enclosure |
|---|---|---|---|---|---|---|---|---|---|---|
| Windows Server 2019 or above, with 5 CAL licenses | Intel Xeon Silver 4309Y 8-core processor x2 | 32GB DDR4 RAM or higher, supports up to 32 memory slots | Hot-swappable SSD 600GB*3, supports up to 24 2.5-inch slots | 12Gb/s SAS interface*1, supports Non-RAID or Pass Through | USB 3.0 *3, built-in Micro USB management port *1, HDMI *1, 1GBase-T *2, supports up to 8 PCIe expansion slots | Supports hot-swapping and redundancy | Bezel with hot-swap function, operation buttons for setting management control chip IP Address, and can display system status and error information. | . Wireless network connectivity . Capable of managing server hardware, system health status, and error messages for mobile devices . Includes KVM function for remote management |
Dual power supplies, supports hot-swapping and redundancy | Standard 19-inch 2U rack-mounted server, including mounting kit |
-
