Products

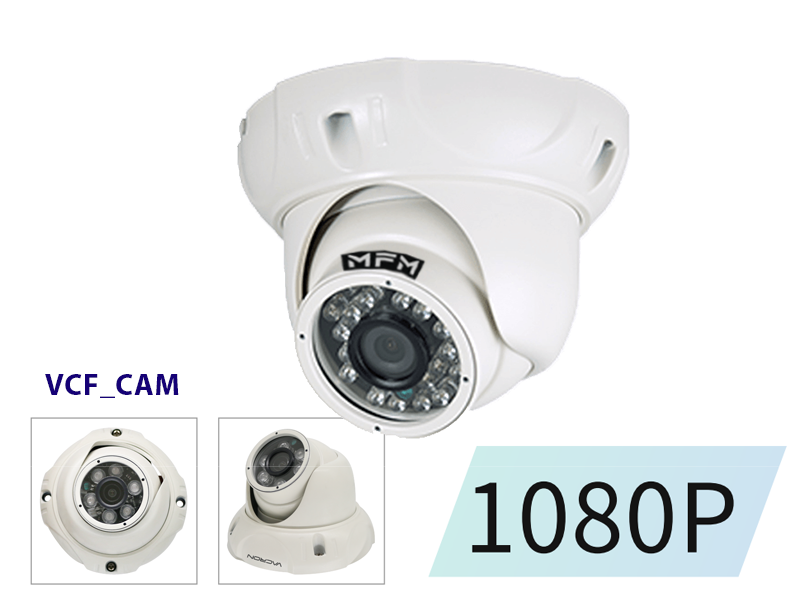

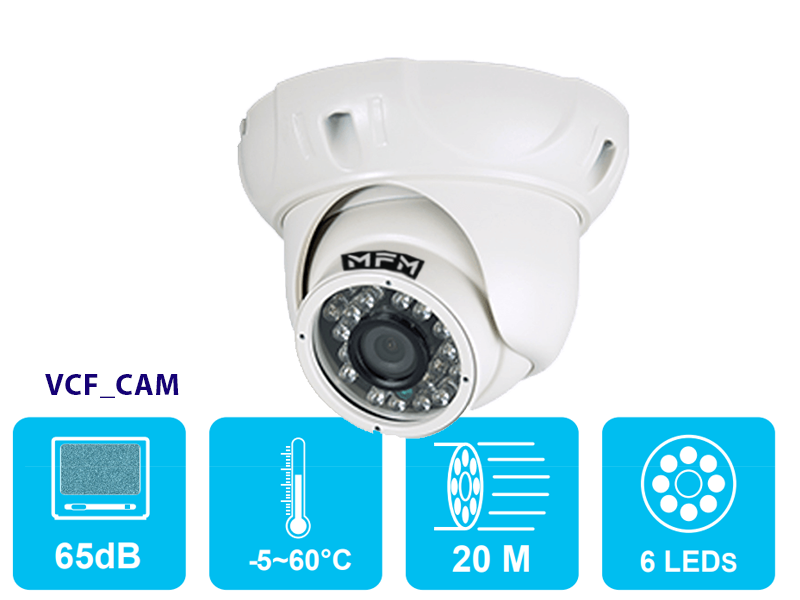

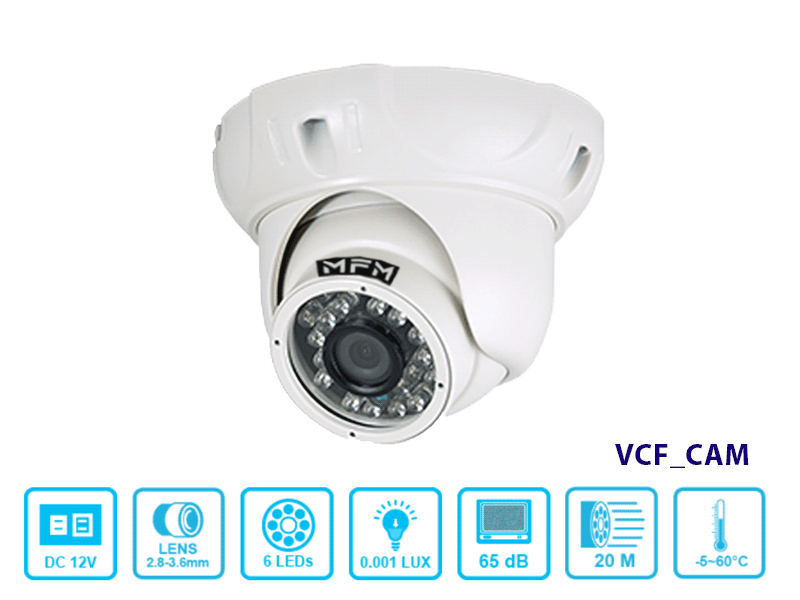

VCF_CAM Dome Camera

Camera

1080P / Hemispherical / H.264 / Infrared

WDR (Wide Dynamic Range) function overcomes high-contrast scenes, presenting clear and perfect image quality.

Model: VCF_CAM

Category: Dome Camera

Tag: Dome Camera, CCTV, IP network camera

HD digital image sensor with a resolution of 1080p @ 30 fps.
2.8/3.6mm megapixel lens.
6PCS infrared LED lights, effective distance up to 20 meters.
Built-in IR CUT filter for accurate day and night switching. 　
WDR wide dynamic range function, overcoming high contrast to present clear and perfect image quality. 　
Supports DVB-T (ETSI EN 300 744) digital TV transmission standard. 　
Transmission distance through coaxial cable can reach up to 1000 meters. 　

Image Compression Format Image Sensor Lens Image Pixels Horizontal Resolution Power Input Current Consumption Power Consumption (Watts) Image Functions Control Functions Infrared Cut Filter (ICR)
H.264, MPEG2-TS HD Digital Image Sensor 2.8/3.6mm Megapixel Lens 1920 (Horizontal) × 1080 (Vertical) 1080P / 30fps DC12V 390 mA 小於4.7W WDR Wide Dynamic Range, AGC Automatic Gain Control, AWB Automatic White Balance, AES Automatic Electronic Shutter, BLC Backlight Compensation, 2D/3D Noise Reduction, Slow Frame Rate Brightness, Contrast, Saturation, Image Quality, Number of Frames, Frequency Setting, Time Setting, NTSC/PAL Setting, MOTION Setting Support 5V IR-Cut
Signal-to-Noise Ratio (SNR) Minimum Illumination Number of LEDs / Projection Distance Wavelength Bandwidth Frequency Range圍 Video Signal
Output Specification		 Audio Operating Temperature Dimensions Weight
Max 65dB 0.001Lux；0 LUX with Infrared Activation 6PCS Infrared LEDs, Effective Distance up to 20 meters 850nm Adjustable Bandwidth Range: 5 MHz ~ 8MHz Frequency Range: 141~923MHz Default: 177 MHz Compliant with DVB-T Digital Television Transmission Standard (ETSI EN 300 744)
Provides Data Encryption for Transmission Data		 Supported - 5℃ ~ +60℃ Ø110 x 81 mm Approximately 370 g
