QRCode Reader

QR_RE

RFID + QR Code

〉Built-in RFID and QR Code scanning technology, allowing users to temporarily pass by scanning QR Codes or using cards for regular access.
〉Built-in RFID sensing antenna supports two frequencies: 125Khz EM / 13.56MHz / ISO1443 Mifare Ultralight / Classic / Plus / DESFire / EV1 / EV2 / NFC (card simulation) / ISO15693 / Felica.
〉Supports both standalone and connected modes of operation.
〉Patented relay shock absorption to prevent inadvertent triggering due to external forces.
〉Supports multiple communication interfaces: RS485 / TCP/IP / WG input & output / UART Port.
〉Supports encrypted communication SSC.( Soyal Security Communication)

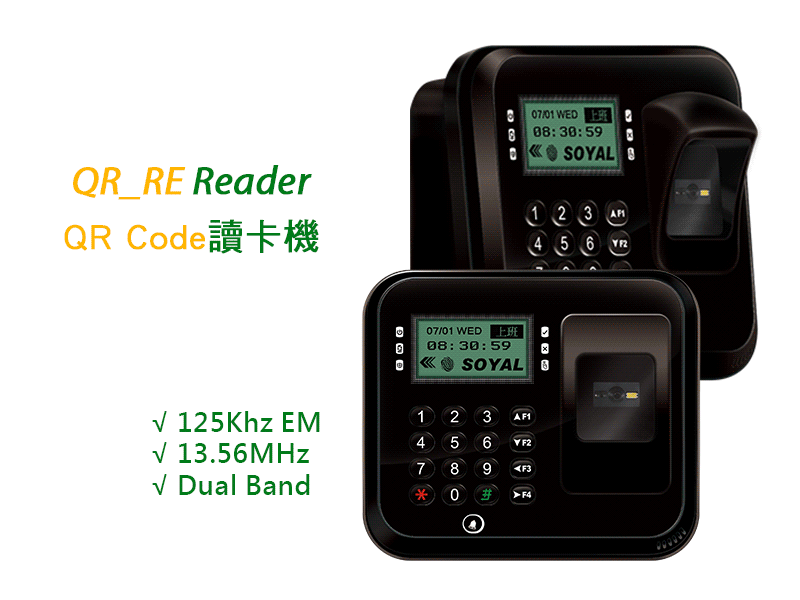

Model: QR_RE

Category: QRCode Reader

Tag: QRCode Reader ,Inductive Graphic Display Controller

Built-in RFID sensing antenna supports two frequencies ： 125Khz EM / 13.56MHz / ISO1443 Mifare Ultralight / Classic / Plus / DESFire / - EV1/ EV2 / NFC (card simulation) /ISO15693 / Felica
Supports both standalone and connected modes of operation.
　　
Patented relay shock absorption to prevent inadvertent triggering due to external forces.
Supports multiple communication interfaces: RS485 / TCP/IP / WG input & output / UART Port. 　
　
Supports encrypted communication SSC (Soyal Security Communication).
Frequencies: *125kHz: ISO18000-2: EM4001 and EM4095 compatible; *13.56MHz: SO14443/ISO 7816-4 Mifare Ultralight, Classic, Plus / DESFire EV1, EV2 / NFC (card simulation) / ISO15693 / Felica. 　
　
UID Bits: 24~64 Bit (configurable).
Induction Distance: 2-15 cm. 　
　

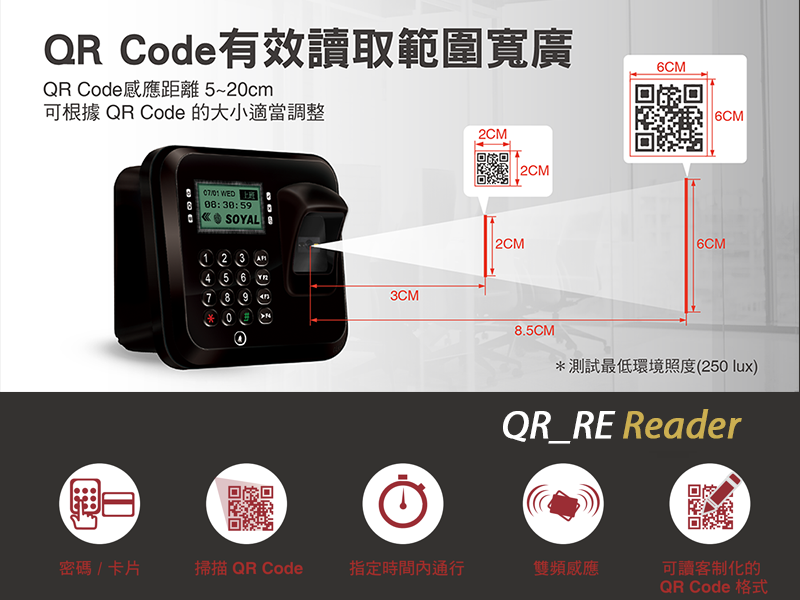

QR Code Reading Distance: 5-20 cm.

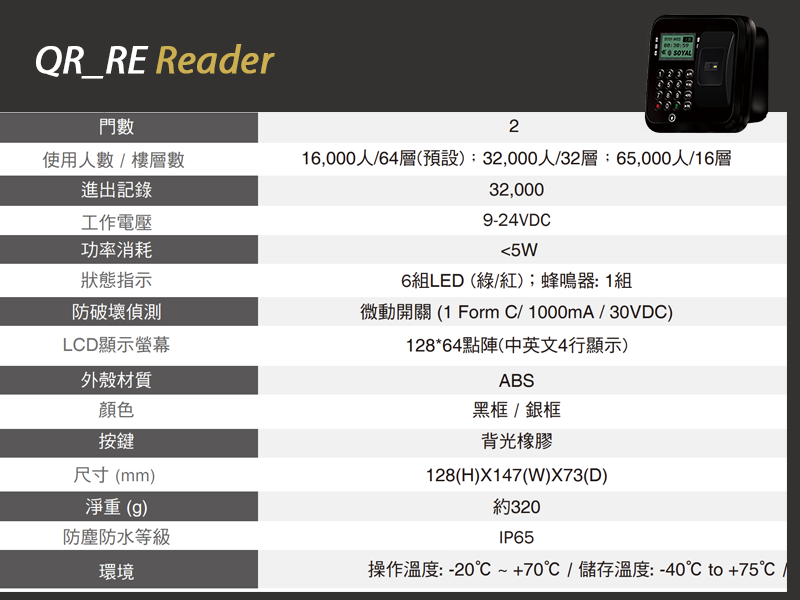

Number of Users / Number of Floors: 16,000 people / 64 floors (default); 32,000 people / 32 floors; 65,000 people / 16 floors. 　

Induction Distance UID Bits QR Code Reading Distance Wiegand Input Wiegand Output Electric Lock Output Alarm Output Alarm Output Digital Output Anti-tamper Detection Operating Voltage CPU Power Consumption
2-15 cm 24~64 Bit (User-configurable) 5-20 cm Wiegand 26~64 Wiegand Data 0, Data 1, Alarm Output, Distress Output (Shared) Door Lock Relay X1, Open Collector X1 Relay X1 Wiegand Data 0 Input X1, Wiegand Data 1 Input X1, Red LED Output X1, Green LED Output X1, Buzzer Output X1 Alarm Output X1, Digital Serial Door Opening Signal X1, Distress Output X1 Micro Switch (1 Form C/ 1000mA / 30VDC) 9-24VDC ARM Cortex M3 (32 bits) Less than 5W
LCD Display Screen Casing Material Keypad Dimensions (mm) Net Weight (g) Dust and Waterproof Rating Operating Temperature Storage Temperature Operating Humidity Storage Humidity Status Indicators
128*64 Dot Matrix (Display in Chinese and English, 4 lines) ABS Black Frame / Silver Frame Backlit Rubber 128(H)X147(W)X73(D) Approximately 320 IP65 -20℃ ~ +70℃ -40℃ to +75℃ 0%~90%(Non-condensing) 0%~95%(Non-condensing) 6 Sets of LEDs (Green/Red),Buzzer x1
