Hipower System
Vehicle detection solution(VDS)
Dynamic traffic information detection, collection, and management applications for signalized intersections and traffic junctions. It is applicable for two-way intersections, crossroads, and various intersection types. Existing network cameras or newly planned cameras can be installed at signalized intersections. The live video stream is processed in real-time by on-site AI-based single-point detection analyzers for the detection of traffic flow and turning traffic flow information. Data is transmitted to the traffic control center via 4G or fiber optic network using Communication Protocol 3.0 or API.

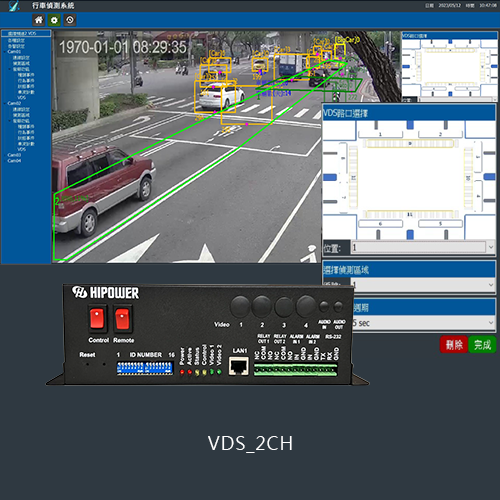

The system equipment can be combined with HIPOWER cameras (bullet/panoramic) to accommodate various intersection layouts. Additionally, it can be paired with the central system management platform iVDs to receive and manage data from multiple intersections.
The system equipment can be combined with HIPOWER cameras (bullet/panoramic) to accommodate various intersection layouts. Additionally, it can be paired with the central system management platform iVDs to receive and manage data from multiple intersections.
Why choose VDS?
The Traffic Flow and Turning Detection System is primarily designed to install cameras at bidirectional roads, intersections, and various intersection types to detect traffic flow, vehicle types, turning ratios, and other related information.
It can receive general camera image streams (RTSP) with a frame rate of over 15fps and a resolution of at least 720p.
Customizable settings for detecting traffic flow directions, object types, and turning flows at each intersection.
Supports the configuration to transmit data to specified addresses every minute and offers export management functions.
Provides intersection modes and drone detection modes to adapt to both long-term and one-time intersection setups.
Offers logical configuration for different intersection scenarios, such as one-way, bidirectional, T-shaped, and cross-shaped intersections.
Object detection includes motorcycles, cars, large vehicles, pedestrians, and can be customized for other vehicle types.
Various detection types are supported: vehicle types (large, small, motorcycles), pedestrians (entire area), stops, traffic flows, and more.
Additional detected behaviors include wrong-way driving, vehicle stops, turning ratios, and other extended events.
Provides detection status for lane congestion.
Utilizes object depth tracking to enhance the accuracy of primary vehicle object detection.
Data transmission: Dynamic information charts are presented on an hourly and 5-minute basis.
Can be integrated with the HiPower backend management platform for remote personnel data management and retrieval applications.
Offers HiPower original technical services, with post-sales support providing free remote system updates.
Analyzes and obtains information on traffic flow quantities, vehicle types, turning ratios, etc., for each lane passing through the intersection.
Presents dynamic information charts on an hourly and 5-minute basis.
Exports data in .csv file format on an hourly and 5-minute basis.
Provides real-time camera images for each intersection.
Timely warnings to ensure regional security.
Detection Function

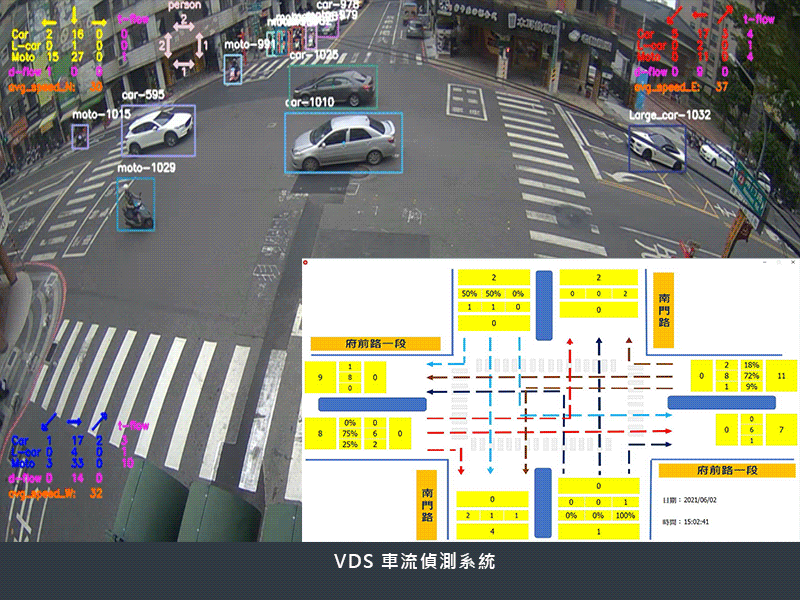

Turning flow detection
It can detect the turning behavior of vehicles at intersections, including left turns, right turns, and straight ahead movements. It can record and tally the turning flows in real-time.
Moving object calculation
It can detect moving objects in the intersection area, such as pedestrians, bicycles, or other obstacles, and calculate their quantity or density.
Traffic flow counting
It can provide statistics on the total traffic flow in the intersection area, transmitting the data to the platform through communication protocols and offering corresponding statistical information.
Vehicle type detection and identification
It can recognize different types of vehicles, such as small cars, large vehicles, motorcycles, or bicycles.
Information detection
It can be applied to detect events at intersections, such as motorcycles encroaching on pedestrian crossings or vehicles stopping unexpectedly. Through this system, these events can be detected in real-time, recorded, and controlled accordingly.
Pedestrian passage detection
It detects the passage of pedestrians in the intersection area, providing information on the number of pedestrians, their passage routes, and pedestrian safety.
System Architecture
Vehicle detection solution(VDS)
Application Areas
Smart Traffic：Set up network cameras or drones at two-way intersections/crossroads and various types of intersections to perform real-time detection of intersection traffic and turning traffic information.
Dynamic Signalized Intersection
Intersection Survey Management
Tourist Area Traffic Flow Statistics
Extension of Technology Enforcement Applications
Illegal U-turn Detection
Illegal Parking and Waiting at the Curbside
Straight Through Movement in Turning Lanes
Vehicle detection solution(VDS)
Application Actual Cases
Urban Roadways
Urban Roadways
Urban Roadways
Urban Roadways
Urban Roadways
Urban Roadways
Urban Railroads
Urban Roadways
Urban Roadways
Urban Roadways
Intersections
Highways
Highways
Urban Roadways
Urban Roadways
Urban Roads
