Contactless Card Reader

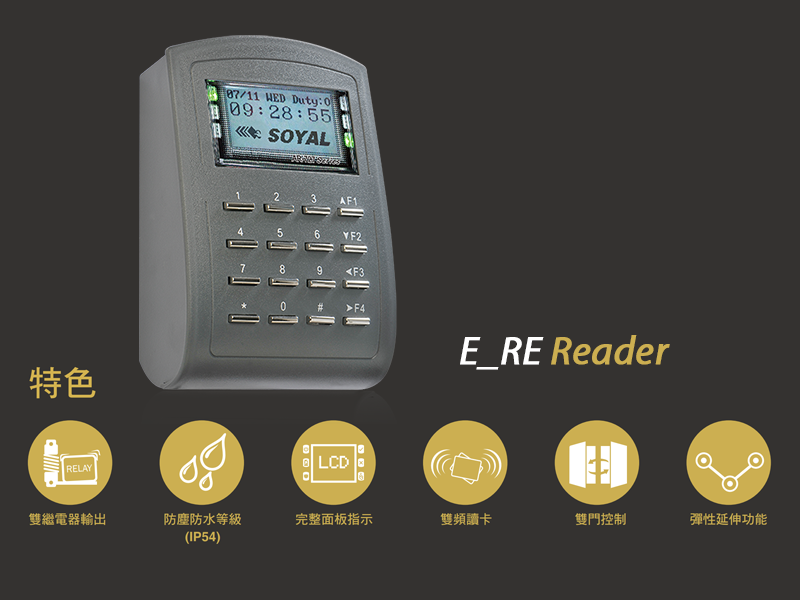

E_RE
Inductive Graphic Display Multi-function Controller
〉Built-in Watchdog to prevent system crashes, perpetual calendar, anti-tamper switch, dust and waterproof functions, alarm settings, holiday settings, access control time slots, automatic door opening time slots, one-in-one-out function, door status monitoring input, providing open door timeout alarm and forced entry alarm functions.
〉User capacity options: 16,000 users / 32,000 users / 65,000 users.
〉Floor control support: 64 floors / 32 floors / 16 floors.
〉Device and network interface disconnection can independently identify card access records and store access control records, time, and date.
〉Multiple access modes to choose from: card reading only, card reading or password, card reading plus password.
〉Dual-door controller: Two sets of door opening buttons, door position reed switches, and door opening outputs for Wiegand sub-readers.
〉Multiple outputs available: electric lock, alarm, alert, anti-duress, digital relay signal.

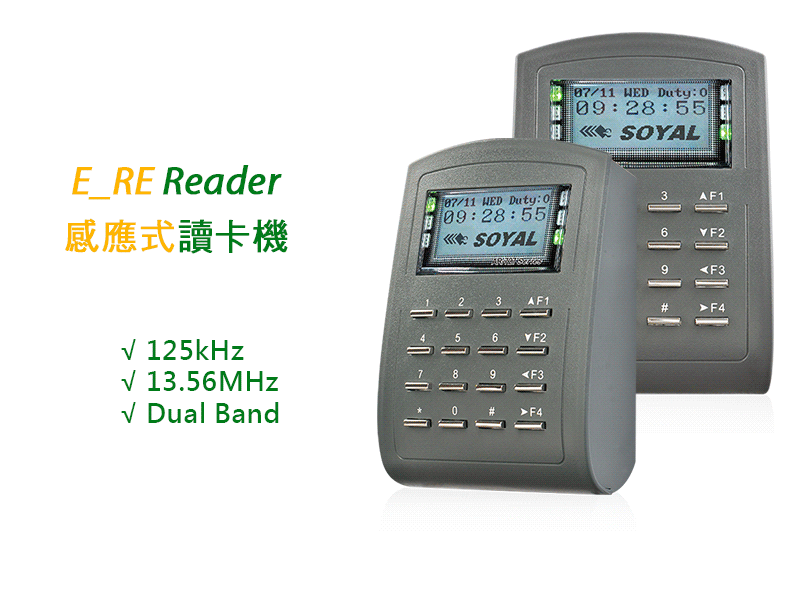

〉Supports 125kHz, 13.56MHz, and dual-frequency (125kHz, 13.56MHz) induction.
〉Supports reader mode: Not only a controller, but also capable of integrating various brands to become a reader for enhanced communication security.
〉Standalone/networked multi-functionality, with intelligent reading function that can automatically switch between standalone and networked operation modes during work.
〉Supports encrypted communication SOYAL SECURITY COMMUNICATION (SSC format) to enhance transmission security.
〉Frequency: 125Khz:ISO18000-2: EM4001 and EM4095 compatible ，
13.56Mhz:ISO14443/ISO 7816-4 Mifare Ultralight, Classic, Plus / DESFire EV1, EV2 / NFC (card simulation) / ISO15693 / Felica，
Dual Band: 125kHz:ISO18000-2: EM4001and EM4095 compatible 13.56MHz: ISO14443/ISO 7816-4 Mifare Ultralight, Classic, Plus / DESFire EV1, EV2 / NFC (card simulation) / ISO15693 / Felica
| Induction Distance | UID Bits | Wiegand Input | Wiegand Output | Electric Lock Output | Alarm Output | Alarm Output | Digital Output | Anti-tamper Detection | Operating Voltage | CPU | Power Consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 125Khz:5-15 cm ，13.56Mhz:2-5 cm ，Dual Band: 2-15 cm | 24~64 Bit (User-configurable) | Wiegand 26~64 | Wiegand Data 0, Data 1, Alarm Output, Distress Output (Shared) | Door Lock Relay X1, Open Collector X1 | Relay X1 | Wiegand Data 0 Input X1, Wiegand Data 1 Input X1, Red LED Output X1, Green LED Output X1, Buzzer Output X1 | Alarm Output X1, Digital Serial Door Opening Signal X1, Distress Output X1 | Micro Switch (1 Form C/ 1000mA / 30VDC) | 9-24VDC | ARM Cortex M3 (32 bits) | Less than 5W |

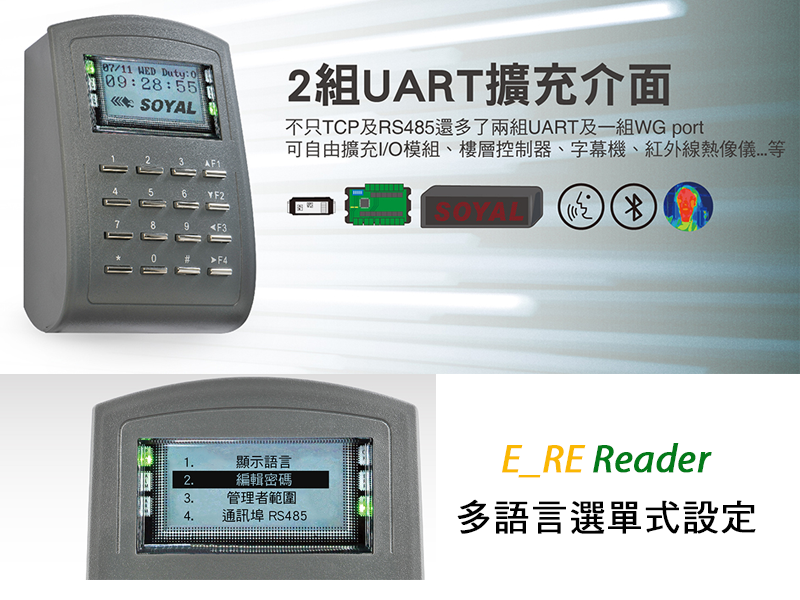

| LCD Display Screen | Casing Material | Color | Keypad | Dimensions (mm) | Net Weight (g) | Dust and Waterproof Rating | Operating Temperature | Storage Temperature | Operating Humidity | Storage Humidity | Status Indicators |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 128*64 Dot Matrix (Display in Chinese and English, 4 lines) | ABS (Fire Rating 94V) | Dark Grey | Electroplated Rubber Keypad | 126(H)X91(W)X46(D) | Approximately 240 | IP54 | -20℃ ~ +70℃ | -40℃ to +75℃ | 0%~90%(Non-condensing) | 0%~95%(Non-condensing) | 6 Sets of LEDs (Green/Red))，Buzzer x1 |
-
