AVI_CMS Automatic Vehicle Recognition Management Server

Automatic Vehicle Recognition(AVI)

Integrated "Status Reception and Configuration Application Service System" Functionality.
Can be used in conjunction with roadside license plate recognition system, integrating vehicle identification cameras, road condition monitoring cameras, supplementary lights, terminal controllers, outdoor cross-type hubs, wireless communication module equipment, control boxes, etc.

Model: AVI_CMS

Category: Server

Tag: Automatic Vehicle Identification(AVI)

Capable of receiving vehicle size data detected by vehicle detectors, as well as identification data from AVI recognition.
Can display VD, AVI, and CMS connection status.
Can modify the vehicle information sent by VD after determining vehicle size, and publish it on variable message signs through fiber optic or other transmission methods agreed upon by the customer.
Option to manually, automatically, or set priority for information delivery to variable message signs.
Supports remote editing of messages sent to variable message signs for display.
Supports various data integration methods such as SDK, API, .XML files, etc.
Provides push notification function for reminding large vehicles to park and rest.


Road Information Detection Functionality
Real-time detection of vehicles passing through, with image capture and quantity accumulation functions.
Counts the accumulated number of vehicles passing through once every hour.
Has image photo capture function and license plate recognition function.
The recognized result photo contains the license plate number (including letters, hyphens, and numbers).
Capable of recognizing vehicle types including motorcycles, small cars, buses, large trucks, etc.
System Integration Functionality
Has the function of integrating detection equipment.
Completes the stitching of license plate and panoramic photos into one photo, with network system time calibration (NTP) function, and can automatically correct system time with the central computer.
Alarm for Exceeding Passage Time Threshold:When the passage time within a detection zone exceeds the preset threshold, an event message is sent to the integrated CMS system for display.
Integrated "Status Reception and Configuration Application Service System" Functionality
Can be used in conjunction with the roadside license plate recognition system, integrating vehicle identification cameras, road condition monitoring cameras, supplementary lights, terminal controllers, outdoor cross-type hubs, wireless communication module equipment, and control box bodies.
Data Storage and Management
Event-related information includes detection time, license plate number, detection address, average driving speed, direction, lane, detection segment length, and other data files.
File names can be customized according to agency requirements, using the format yyyymmdd.
File names for photos can be customized to display the Gregorian year, month, day, hour, minute, and second.
File folders can be named based on agency requirements, using a three-tiered structure of the Gregorian year, month, and day for photo management.
Management Features
Users can log in and operate the management interface through a web browser.

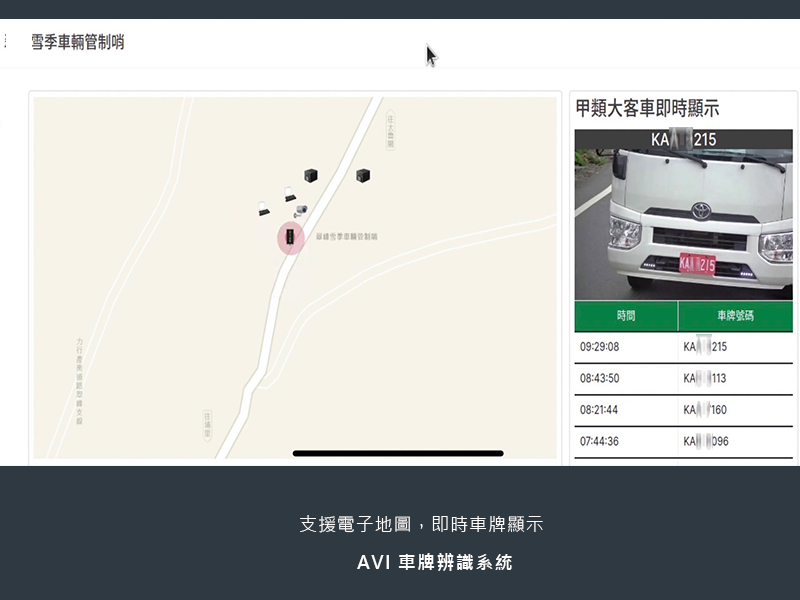

Provides real-time information display for system integration applications, including real-time operation status, real-time image display, and abnormal event alerts.

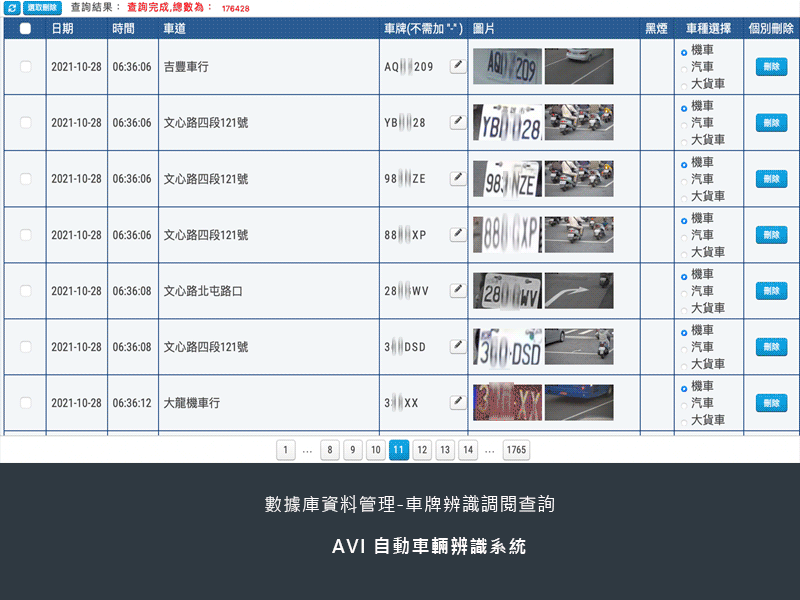

Offers historical data queries on an hourly, daily, and monthly basis.
Provides user settings, management, queries, and status reception for integrated applications.
Includes permission management, allowing operational functions to be set based on user accounts.
Offers integrated linkage testing mode, allowing input of simulated vehicle data to test system linkage conditions.
Supports various data integration methods such as SDK, API, .XML files, and more.
Provides a large vehicle parking and rest reminder push function.

Operating System Central Processing Unit Memory Storage Disk Controller Transmission Interface Unit Cooling Fan LCD Panel Cover Other Management Features Power Supply Casing or Enclosure
Windows Server 2019 or above, with 5 CAL licenses Intel Xeon Silver 4309Y 8-core processor x2 32GB DDR4 RAM or higher, supports up to 32 memory slots Hot-swappable SSD 600GB*3, supports up to 24 2.5-inch slots 12Gb/s SAS interface*1, supports Non-RAID or Pass Through USB 3.0 *3, built-in Micro USB management port *1, HDMI *1, 1GBase-T *2, supports up to 8 PCIe expansion slots Supports hot-swapping and redundancy Bezel with hot-swap function, operation buttons for setting management control chip IP Address, and can display system status and error information. . Wireless network connectivity
. Capable of managing server hardware, system health status, and error messages for mobile devices
. Includes KVM function for remote management
Dual power supplies, supports hot-swapping and redundancy Standard 19-inch 2U rack-mounted server, including mounting kit.
