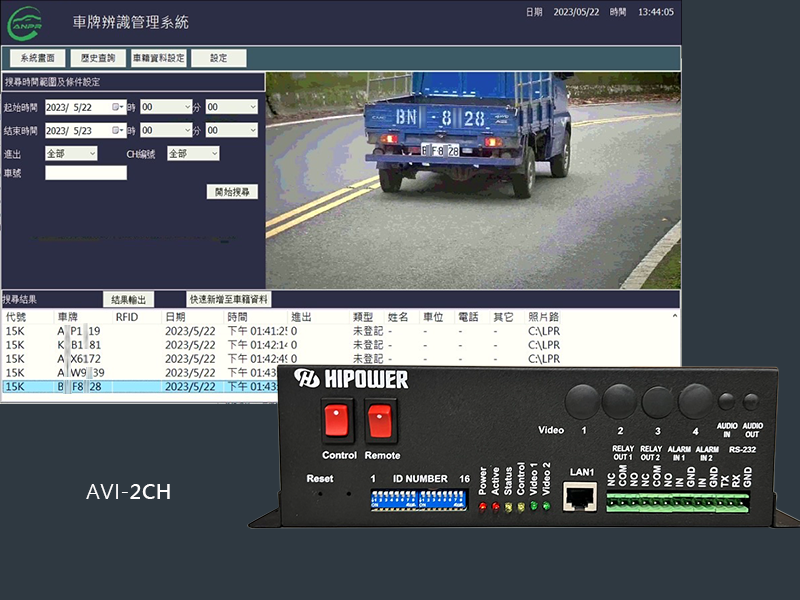

AVI_2CH Automatic Vehicle Recognition Controller
Automatic Vehicle Identification(AVI)
AI Image Recognition Features
2.Capable of recognizing both old and new style license plates.
3.Covers the entire lane area, including vehicles on both sides and those crossing over lane boundaries.
4.Can complete license plate recognition within 0.5 seconds, providing an image of the license plate number.
5.Can still perform license plate recognition when the plate is tilted at an angle less than 30 degrees.
6.Under conditions of undamaged, unobscured, untilted license plates and good weather, achieves an accuracy rate of 85% or higher for daytime recognition and 80% or higher for nighttime recognition. Provides on-site daily recognition data as evidence.
7.With visual identification possible, achieves an accuracy rate of 85% or higher for vehicle type recognition.
8.Through system integration, transmits recognition results to status reception and application service systems.
| Operating System | Processor | Memory | Network | Screen Output | Hard Drive | Interface | Watchdog | System Time Setting | Others | Buttons and Indicator Lights | Place of Manufacture |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Windows 7 embedded or above (supports 32 and 64-bit) | 1.99GHz or above. Fanless with enforced CPU cooling. | Supports DDR3 memory, equipped with ROM and RAM. | - RJ-45, 2x 100/1000Base TX Ethernet network interfaces (no other interface conversions). - Complies with IEEE802.3/Ethernet 100Base-TX and IEEE802.3/Ethernet 1000Base-T standard specifications, with bandwidth of 100/1000Mbps, capable of automatic switching. - Each set of network interfaces can be configured with a different IP Address. |
One each of VGA and HDMI outputs. | Can install 2 7200RPM, Serial ATA 1TB (or above) hard drives. | Audio input/output, Rs-232 / DI X 4 / DO X 2 / USB X 3. | Independent chip. Can detect CPU power abnormalities, software and firmware program abnormalities, and reset the system. | Can automatically correct system time with the central computer or NTP server on the network. | - After power outage and recovery, it does not affect the original system parameter settings and can automatically restore normal operation. - Provides remote viewing of system operation status. - Has synchronization function with NTP server and system log recording. - Has hardware signal control for image capture, achieving synchronization of image display and detection signal time. |
- Equipped with power switch and reset button. - Shows power status, operation mode, communication faults, sensor abnormalities, etc. - With 16 toggle switches.。 |
Made in Taiwan. |
-
Catalog Download on May, 2023
Automatic Vehicle Identification(AVI)
Application Actual Cases
Mobile Onboard License Plate Recognition
Travel Time Statistical Analysis
Real-Time License Plate Recognition at Intersections
Technology-Enabled Law Enforcement for Violations at Crossing Lanes
Mobile Onboard License Plate Recognition
Intersection Real-time License Plate Recognition
Real-Time License Plate Recognition at Intersections
HiPower provides professional AIOT comprehensive solutions.
We integrate image detection and analysis technology, optical sensing signals, and IO control linkage design.
We also employ various technologies such as WEB cloud platform communication specifications and user interface integration components.
Based on the specific requirements of different industries, we offer customized decision-maker analysis management systems to our clients. Additionally, we provide application solutions for various industries.
Our goal is to combine cloud application system platforms to deliver advanced decision-maker analysis management systems that meet the needs of our customers
