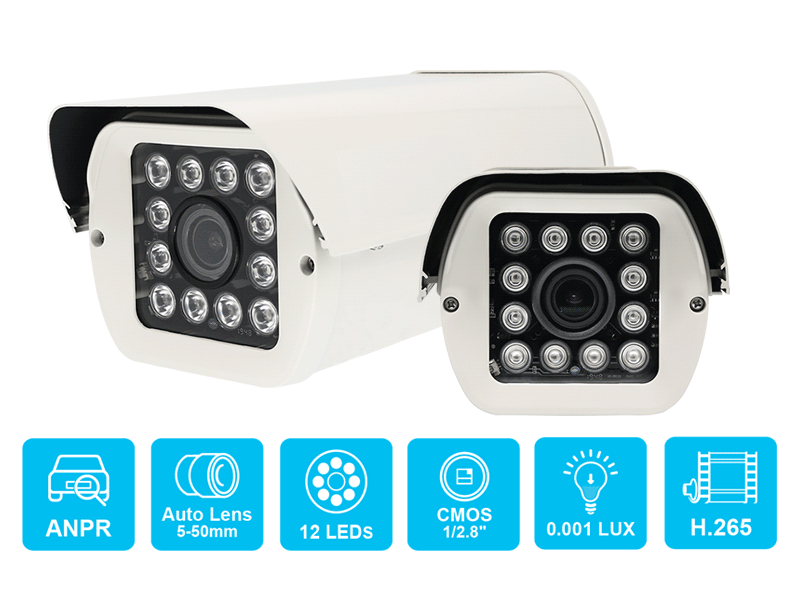

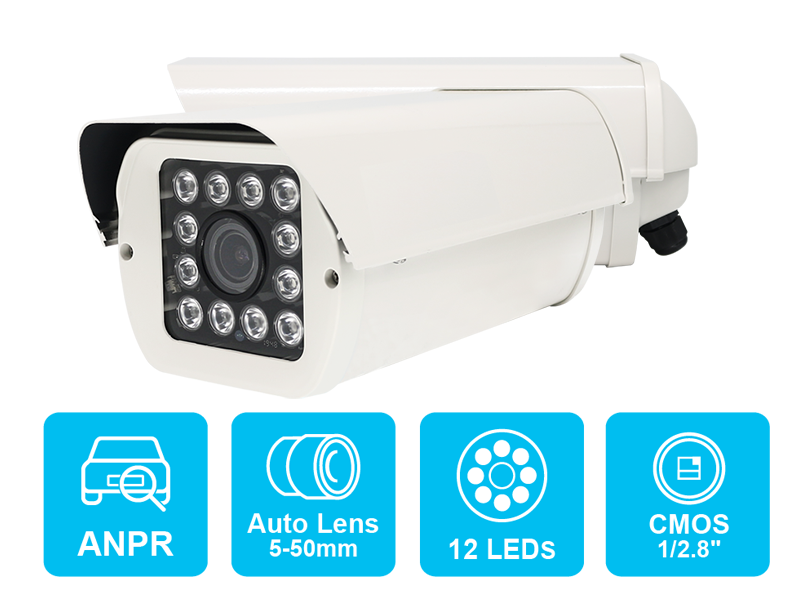

AVI_CAM License Plate Recognition Camera

Camera

ITS_CAM License Plate Recognition Camera - Lens with a focal length of 5~50mm.

〉The camera is equipped with built-in LPR (License Plate Recognition) algorithm, capable of recognizing Taiwanese license plate numbers and identifying vehicles with speeds up to 100 KM/h.
〉Paired with a 5mm~50mm motorized lens, allowing users to adjust the sharpness of the recognition area.
〉Starlight-grade Sony CMOS provides high-resolution color images with low light sensitivity, enhancing nighttime surveillance.
〉Real-time H.265/H.264 dual-codec compression technology, supporting multiple levels of image quality configurations.
〉The device supports 256GB SD card storage for capturing images and video data, and allows remote querying of event data.
〉The recognition results can be linked and transmitted to Vacron recording systems, providing real-time access to vehicle entry and exit information.
〉Supports the ONVIF international standard, ensuring optimal compatibility and integration.

Model: AVI_CAM

Category: Camera

Tag: License plate recognition cameras, CCTV

Number of License Plates Recognized Simultaneously: Capable of recognizing 5 sets of license plates simultaneously on the monitoring screen.
Recognizable License Plate Size: The size of the license plate image on the screen should be at least 120x80 pixels.
　　
License Plate Recognition Modes: Can be set to open or close. Whitelist settings can control whether it is a passing vehicle or an alerting vehicle.
Accuracy Adjustment Setting: Initial default value is low. Depending on the installation environment, the recognition rigor can be adjusted to reduce license plate error rates. 　
License Plate Alert Notification: Can trigger I/O OUT output high/low (3.3v~0) alarm signal; captured license plate recognition results can be sent to FTP or saved locally on the Micron SD card. 　
Alarm Response Time: Can set I/O alarm output time to allow management personnel processing response time; can set I/O alarm output voltage level high/low (3.3v~0), triggering alarms in the backend alarm system or linking alerts. 　
Storage of License Plate Recognition Images: Can be separately set for local SD card recording or setting up FTP Server to transmit the license plate recognition results to the server; for license plates on the monitoring screen, one photo will be taken every 30 seconds to avoid excessive data photos affecting storage space and overall system stability. 　
Control List Setting: Can set the maximum upper limit for controlling license plates, supporting up to 10,000 sets of license plate data. 　
Local Micro SD Card Storage: Supports Micro SD card up to 256G, capable of storing local license plate recognition photos. License plate recognition system captures SD card photos for confirmation on the browser page (after enabling the license plate recognition system to capture SD card photos, the built-in SD card will be formatted and normal monitoring recording will be forcibly turned off). 　


Image Performance
H.265/H.264: 1920x1080 at 60 fps
H.265/H.264: 1280x720 at 60 fps
H.265/H.264: 640x480 at 60 fps
Dual Codec with H.265 and H.264 Compression Technology allows simultaneous transmission of multi-mode video streams.
Image Adjustment
Adjustable image size, quality, and transmission speed.
Display time, date, or custom text on the image, and configure the display position.
Adjust brightness, contrast, saturation, and sharpness.
Equipped with AGC, AWB, AES, BLC, and WDR functions.


System Image Sensor Network Filter Infrared Light Security Output/Input Ports Number of Channels Browser Electronic Shutter
Flash：16MB ；RAM：256MB SONY FullHD High Quality 1/2.8¬ CMOS Image Sensor Communication Protocol: IPv4, TCP/IP, DHCP, HTTP, RTSP, SNTP, DNS.
Network Interface: 10/100 Mbps Ethernet, RJ-45 		Built-in magnetic infrared filter switcher HHI-P 12 pieces of infrared LEDs, with an infrared projection distance of up to 100 meters Allows up to 8 users to connect simultaneously, with user-level access management Input Power: DC12V
Input/Output Ports: RJ-45 network port, power input port DC12V,
audio input/output (BNC-RS485 output), alarm output		 60fps at all resolutions and compression formats MSupported Browsers: Microsoft Internet Explorer 6.0 and above, Safari, Chrome, or Firefox 1/2 ~ 1/100,000 Sec
Browser Low Light Sensitivity Alarm and Event Notifications Users Maintenance Lens Maximum Power Consumption Waterproof and Dustproof Rating Operating Environment Dimensions
Microsoft Internet Explorer 6.0以上 Safari, Chrome或Firefox 0 .01Lux Motion detection mode, with notifications sent via E-mail or file uploads to FTP. Supports a maximum of 8 simultaneous online viewers, with user permission levels for graded management. Allows firmware upgrades online via the network. Auto Varifocal 5-50mm 3.6W(IR OFF)、12W(IR ON) IP66 0 ~ 45 °C。 255 x 75.3 x 75 mm / 1190g
