RFID_4CH RFID Reader

RFID

〉One-piece molded ultra-thin aluminum body, fanless heat dissipation.
〉Peak current up to 600mA +/-10% (12V DC input) at full power output.
〉Low power consumption for single label, as low as 300mA +/-10% (12V DC input).
〉On-board 8 independent power sources. Each component is powered by a separate source.
〉All power sources have soft start function to ensure stable voltage at all times.

Model: RFID_4CH

Category:: RFID Reader

Tag: RFID Reader,RFID

Multi-Protocol Support: Capable of simultaneously supporting EPC C1G2 and ISO18000-6B protocols, catering to various application requirements.

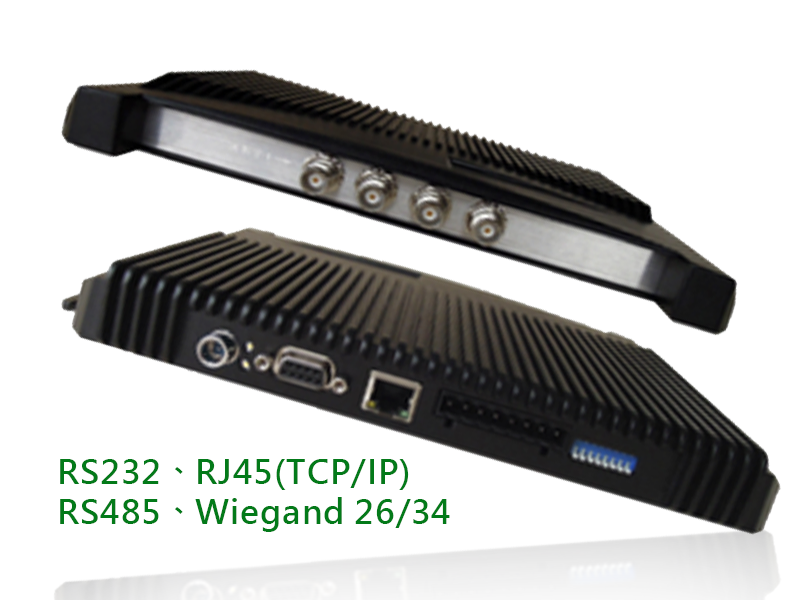

Various Communication Interfaces: Provides RS232, RJ45 (TCP/IP), RS485, Wiegand 26/34 interfaces, meeting the communication needs of various applications.
　　
High-Speed Polling with 4 Antennas: Each antenna has a minimum polling time of approximately 25ms; the polling time of each antenna can be configured individually.
18000-6B Large Data One-Time Read/Write: One-time read of 216 bytes takes less than 500ms; one-time write of 216 bytes takes less than 3.5 seconds. 　

Heat Dissipation Method Maximum Communication Bit Rate GPIO Communication Interface Supported Tag Cache Peak Inventory Tag Speed Receiver Sensitivity Output Power Flatness Output Power Accuracy
Air cooling 115,200 bps 2 input optocoupled, 2 output optocoupled RS-232 or TCP/IP Ambient temperature monitoring, antenna connection protection, tag RSSI 1000 tags @ 96 bit EPC 700 shots/sec Less than -85 dBm +/- 0.2dBm +/- 1dBm
Transmission Power Fast Polling Function for 4 Antennas Applicable Region Operating Frequency Transmission Interface Air Interface Protocol Operating Humidity Storage Temperature Operating Temperature Maximum Operating Current
0 – 26dBm High-speed polling with 4 antennas. The shortest polling time for each antenna is about 25 milliseconds. The polling time for each antenna can be configured individually. US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 with & without LBT regulations Mainland China/Japan/Korea/Malaysia/Taiwan 920MHz – 928MHz IEE 802.3 Ethernet Interface Port EPC global UHF Class 1 Gen 2 / ISO 18000-6C. ISO 18000-6B Less than 95% (+25℃) -20 ℃ - +85 ℃ -20 ℃ - +55 ℃ 600mA +/-5%@DC 12V Input
Sleep State Current Standby State Current Input Voltage Chassis Material Weight Dimensions
Less than 100uA Less than 70mA DC 12V – 18V Die-cast Aluminum Alloy 1.8 Kg 203mm(L) × 160mm(W) × 28mm(H)
