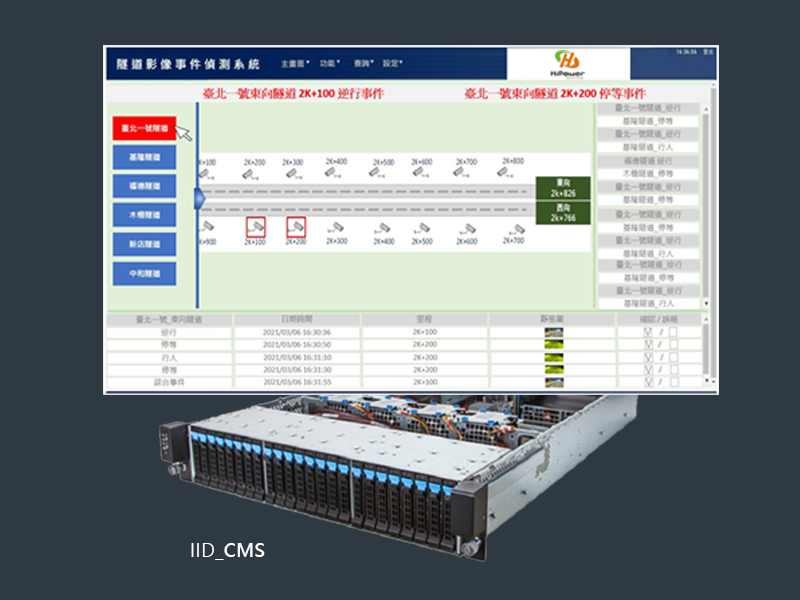

IID_CMS Incident Information Detection Management Server
Incident Information Detection(IID)
2.Receive event alerts and event video footage detected by the video analyzer.
3.Equipped with a Chinese graphical user interface for monitoring, operation, and querying functions.
*Real-time reception of events and issuance of audible alerts to notify operators to monitor the event location; the audible alert can be enabled or disabled.
4.Event alert function | 5. Video storage function | 6.Management function
7.Communication loop error detection function | 8. Event query function | 9. Data recovery function
10. The system adopts a Client-Server architecture, capable of providing authorization for 15 or more clients.
11. The system supports a cluster system backup architecture, consisting of two sets of identical computer equipment and network systems. In the event of a server failure, the system will proactively transfer data to another server.
12. Provides system restoration function and offers system backup discs.
13. Provides the capability for the video event detection workstation to access event messages and videos.
14. System time calibration function: The equipment can automatically calibrate the system time via the transmission network with the central computer.
15. Generates XML files for the following data every minute, for retrieval by the central computer system.
16.Generates JSON files for real-time event data, for retrieval by the central computer system of the cloud-based project.
17.Event statistics | 18.False alarm reporting | 19.Information security

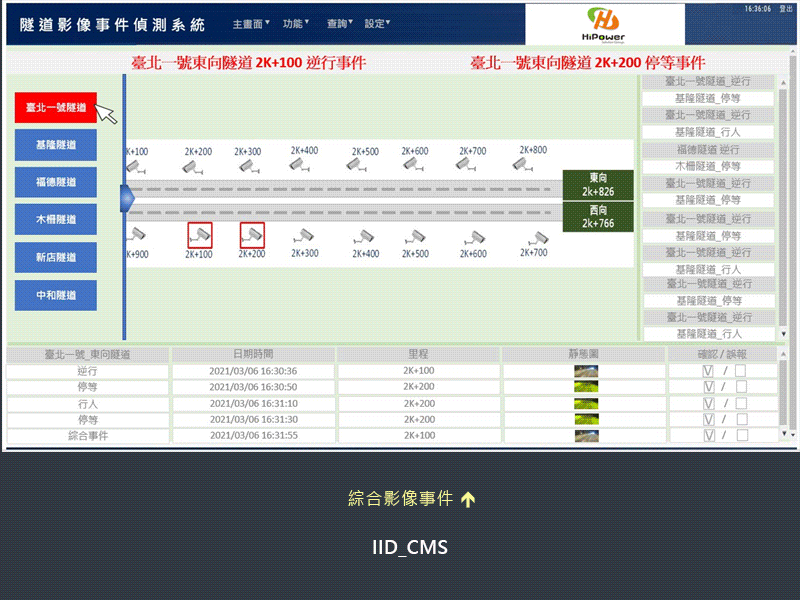

Graphical User Interface (GUI)
The system provides password editing functionality, enabling unified account and password management with the central computer system's single sign-on software. This includes permission levels, operator passwords, and name settings.Can select any camera included in the automatic event detection system within the tunnel to perform the following monitoring/operation and querying functions
(A) Query Display
a. Directly access stored event messages and event footage.
b. Display event messages and event footage reported by the video analyzer.
c. Monitor the live feed from the camera.
(B) Information Recording Time Setting
a. Set from 1 minute to 3 minutes before the event occurs.
b.Set for up to 4 minutes.。
(C) System Parameter Settings
a. All detection items can be enabled, disabled, or have detection parameters modified by the video event detection server.
b. For individual camera input ports, configure image recognition parameters.
Generate JSON files for the following real-time event data for retrieval by the central computer system of the cloud-based project
Provide event categories1- Vehicle idle detection.
2- Pedestrian detection.
3- Debris detection.
4- Vehicle wrong-way detection.
5- Visibility (smoke/fog) detection.
6- Motorcycle detection.
Provide event time: Day, hour, minute, second.
Event Alert Functionality
It can display real-time event messages and event image screens reported proactively, and issue audible alarms and visual alerts to notify operators to monitor the event screen. The activation or deactivation of the audible alarm can be configured.The event location should be marked on the real-time image screen for the convenience of operators.
Events detected after image recognition analysis based on deep learning are categorized primarily. Cameras reporting the same alert for the same event are viewed in the same category. After reviewing alerts for the same event, they will be automatically consolidated under one event.
Image Storage Functionality
It supports recording each event for 4 minutes, up to 10 events per camera per day, and can retain them for 90 days.Store event videos in a format of 1280X720 pixels, color, at a minimum of 30 frames per second (FPS), including H.265 and H.264 compression formats. The system supports single-frame playback.
The event recording image screen should indicate the event location.
Configure the storage path for recording images; the system can connect to network storage media.
Communication Loop Fault Detection Functionality
If there is a communication interruption in the communication loop of the image analyzer, the system will automatically display and record the disconnection alarm message.Data Recovery Functionality
When the connection with the image analyzer is restored after a disconnection, the system will automatically replenish the event data and images stored by the image analyzer during the interruption period.Management Functions
Can set the year, month, day, hour, minute, and second data.Can view the current time of the remote image analyzer.
Can view the equipment number of the remote image analyzer.
Can view the software version data of the remote image analyzer.
Can view the real-time hardware status of the remote image analyzer, and can display messages about camera image loss.
Event Query Functionality
Can display all event records within 180 days.Can perform event queries based on criteria such as date, time, event location, camera number, camera name, and event category. The query data can be exported and saved as Word or Excel files for printing.
Each event message can be linked to the corresponding event image, and the event image will indicate its location.

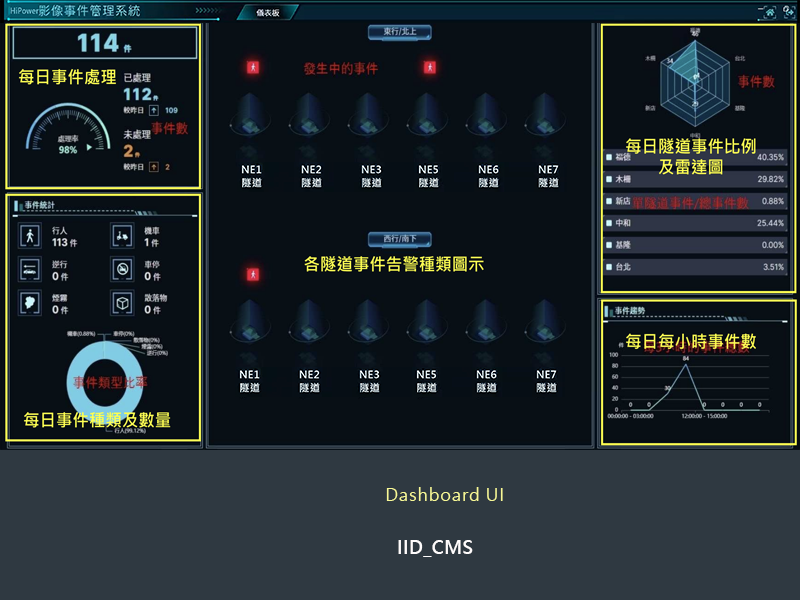

Event Statistics
Can provide graphical statistical analysis based on dates, individual tunnels, and event categories.Users can choose from various types of graphs such as bar charts, line charts, stacked bar charts, horizontal bar charts, pie charts, or donut charts to display suitable graphics and statistical values.
False Alarm Reporting
Personnel can review event alerts and report any errors they find (included in false alarm statistical analysis).It includes false alarm statistical analysis (camera counts, major time periods, etc.).
False alarm data will be aggregated and stored for further improvement of the deep learning model.
XML Files Generated Every Minute for Retrieval by the Central Computer System
Analyzer Hardware Status (Normal/Abnormal).Analyzer Connection Status (Connected/Disconnected).
Camera Connection Status (Connected/Disconnected), Abnormal Events of Image Loss, and Recording Status, etc.
Operating Status of Hardware Devices (Including Servers), including device disconnection, disk failure, abnormal power supply, etc.
Information Security
HiPower, a proprietary brand, provides GreenJet's original factory-authorized certification documents.All events and image storage in the system cannot be deleted or tampered with, even by the highest-level administrator.
It possesses an operation log with non-repudiation, which cannot be deleted or modified without authorization.
| Operating System | Central Processing Unit | Memory | Storage | Disk Controller | Transmission Interface Unit | Cooling Fan | LCD Panel Cover | Other Management Features | Power Supply | Casing or Enclosure |
|---|---|---|---|---|---|---|---|---|---|---|
| Windows Server 2019 or above, with 5 CAL licenses | Intel Xeon Silver 4309Y 8-core processor x2 | 32GB DDR4 RAM or higher, supports up to 32 memory slots | Hot-swappable SSD 600GB*3, supports up to 24 2.5-inch slots | 12Gb/s SAS interface*1, supports Non-RAID or Pass Through | USB 3.0 *3, built-in Micro USB management port *1, HDMI *1, 1GBase-T *2, supports up to 8 PCIe expansion slots | Supports hot-swapping and redundancy | Bezel with hot-swap function, operation buttons for setting management control chip IP Address, and can display system status and error information. | . Wireless network connectivity . Capable of managing server hardware, system health status, and error messages for mobile devices . Includes KVM function for remote management |
Dual power supplies, supports hot-swapping and redundancy | Standard 19-inch 2U rack-mounted server, including mounting kit |
-
