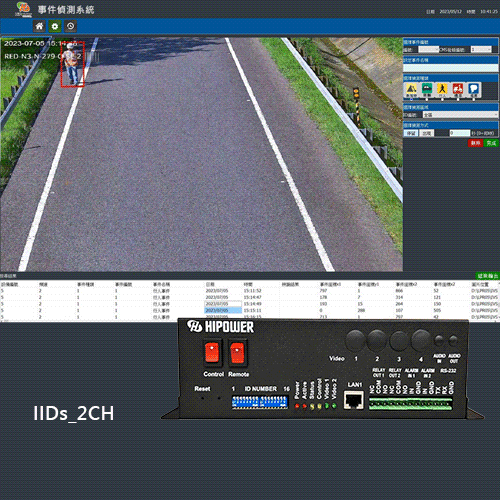

IID_2CH Incident Information Detection Analyzer
Incident Information Detection(IID)
AI Image Recognition and Analysis Technology

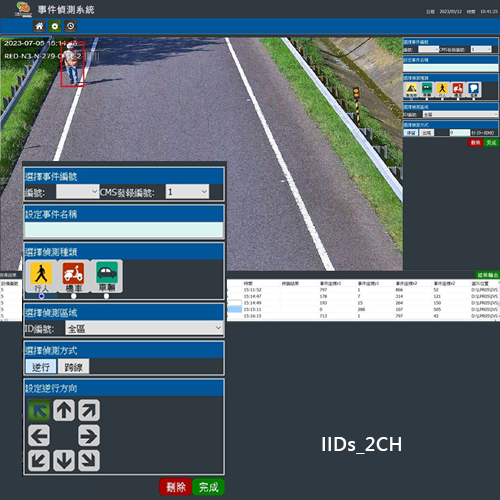

2-Pedestrian Detection：If a pedestrian is walking at a normal pace within the tunnel and walks continuously within 60 meters, the size of the person's body must occupy 8% (or more) of the screen width and height. The system will issue a warning within 10 seconds after the event occurs.
1-Vehicle Waiting Detection：When a vehicle stays for more than the system-set time, and the size of the vehicle occupies 8% (or more) of the screen width and height, the system will issue a warning within 10 seconds after the event occurs.
3-Debris Detection：If debris stays in the detection area for more than the system-set time, and the size of the debris occupies 8% (or more) of the screen width and height, with clear color difference displayed (based on 24-bit RGB with over four and a half million color shades), the system will issue a warning within 10 seconds after the event occurs.
4-Vehicle Wrong-Way Detection：The system can detect if a vehicle is traveling in the wrong direction within 80 meters continuously in the detection area. The size of the vehicle must occupy 8% (or more) of the screen width and height. The system will issue a warning within 10 seconds after the event occurs.
5-Visibility (Smoke) Detection：If smoke occupies 50% (or more) of the screen or if the visibility of the road markings is continuously below the set threshold value, the system will issue a warning within 60 seconds after the event occurs.
6-Motorcycle Detection：The system can detect if a motorcycle is traveling continuously within 80 meters in the detection area. The size of the motorcycle must occupy 8% (or more) of the screen width and height. The system will issue a warning within 10 seconds after the event occurs.
7-Vehicle Type Detection：It can distinguish between small cars and large cars. The detection accuracy for small cars and large cars is above 70%, and speeds below 30 kilometers per hour are not included in the accuracy calculation.
*The above detection functions can be enabled or disabled for each camera image based on site requirements.
Reported Information
The reported information includes the event category, occurrence time, occurrence lane, vehicle type, and camera number.Real-time Event Image Reporting (The event location will be marked on the screen).
Information Recording Data
Configurable by the Image Event Detection Workstation to record 1 to 3 minutes before the event occurs.Configurable by the Image Event Detection Workstation to set event recording time, with a maximum setting of up to 4 minutes.
Input image format and event recording format are 1280x720 pixels or higher, color, at least 30 FPS, in both H.265 and H.264 compression formats, and support single-frame playback.
Hardware Status Detection and Reporting
Able to detect the status of the image analyzer and camera image loss.When there is a change in hardware status, immediate status reporting will be initiated.
Able to provide real-time hardware status reporting upon query command.
System Time Calibration
Able to automatically calibrate system time through the network and the central computer's time calibration system.Hardware Abnormality Recovery
Remote communication reset can be performed from the Image Event Detection Workstation.Remote hardware reset can be initiated, with memory data being retained during the reset.
In the event of a power outage followed by restoration, the system will automatically restart, undergo an initialization process, and resume normal operation.
Equipped with a Watch-Dog, enabling automatic initialization.
After the initialization process is completed, it will automatically report to the central terminal. If there are any abnormal data, a request can be made to the central terminal to download relevant configuration data.
Data Storage and Protection
Each piece of data (including event images) can be stored locally for a minimum of 7 days.(Each camera records events for 4 minutes per event, up to 10 events per day)
In case of communication disconnection, data can be stored locally.
Event images will indicate the event location.
Even when disconnected from the Image Event Detection Server, the Image Analyzer will continue to store event data (including images).
Upon restoration of connection with the Image Event Detection Server, it will automatically replenish event data and images stored by the Image Analyzer during the disconnection period.
| Operating System | Processor | Memory | Network | Graphics Card | Screen Output | Hard Drive | Watchdog | Others | Place of Manufacture |
|---|---|---|---|---|---|---|---|---|---|
| Windows 10 Pro 64-bit above | 2.4GHz above | 8GRAM | - RJ-45, 2x 100/1000Base TX Ethernet network interfaces (no other interface conversions). - Complies with IEEE802.3/Ethernet 100Base-TX and IEEE802.3/Ethernet 1000Base-T standard specifications, with bandwidth of 100/1000Mbps, capable of automatic switching. - Each set of network interfaces can be configured with a different IP Address. |
Independent graphics card with memory of GeForce GT1050Ti | One each of VGA and HDMI outputs. | 256GB SSD, supports expandable storage up to 521GB. | Built-in hardware and software watchdog timer for monitoring. Operates independently (not the same unit as the central processing unit), capable of detecting CPU power abnormalities, software and firmware program anomalies, and resetting the system. |
- After power interruption and restoration, the system supports temporary retention of original system parameters and can automatically resume normal functioning. - Supports remote monitoring of system operation status. - Supports NTP synchronization function and records work logs. - Hardware initiates image detection synchronized with capture control, ensuring image capture is synchronized with image detection time. - Features an industrial-grade fanless cooling design. |
Made in Taiwan. |
-
Catalog Download on May, 2023
