CCR_4CH Container Code Recognition Analysis Server

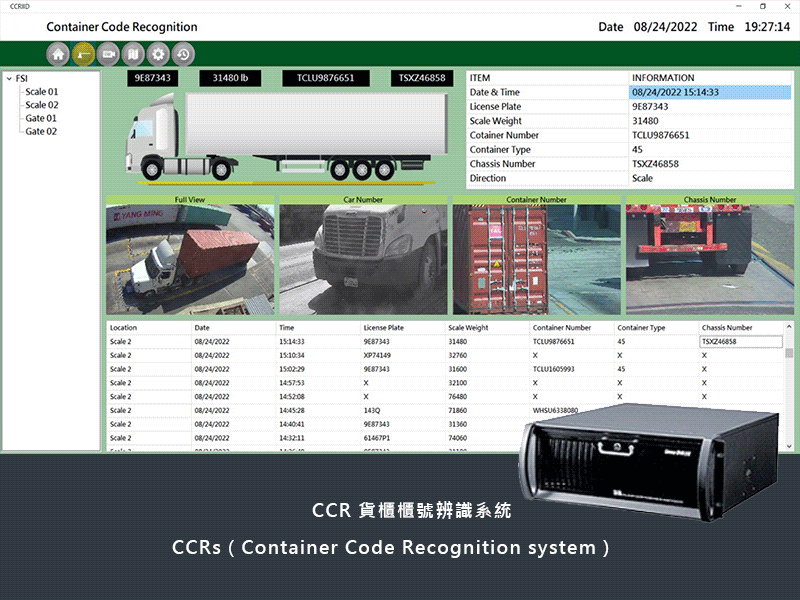

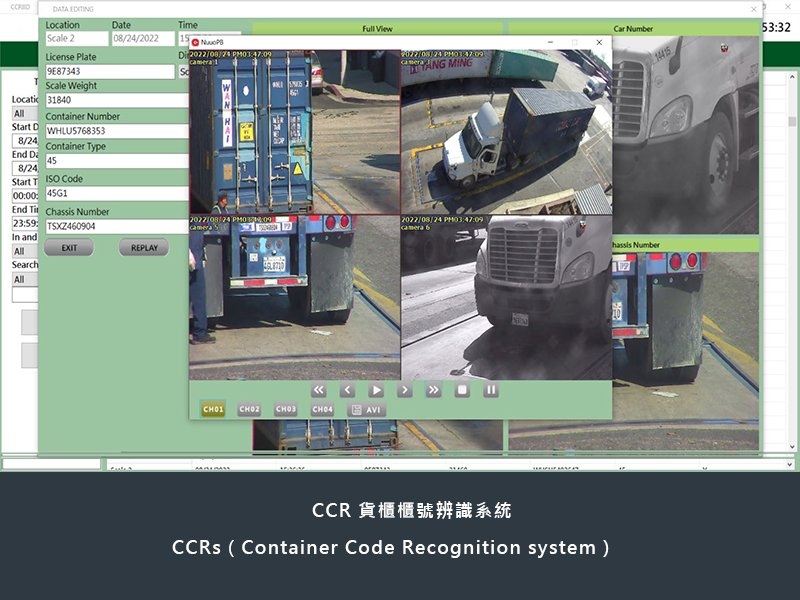

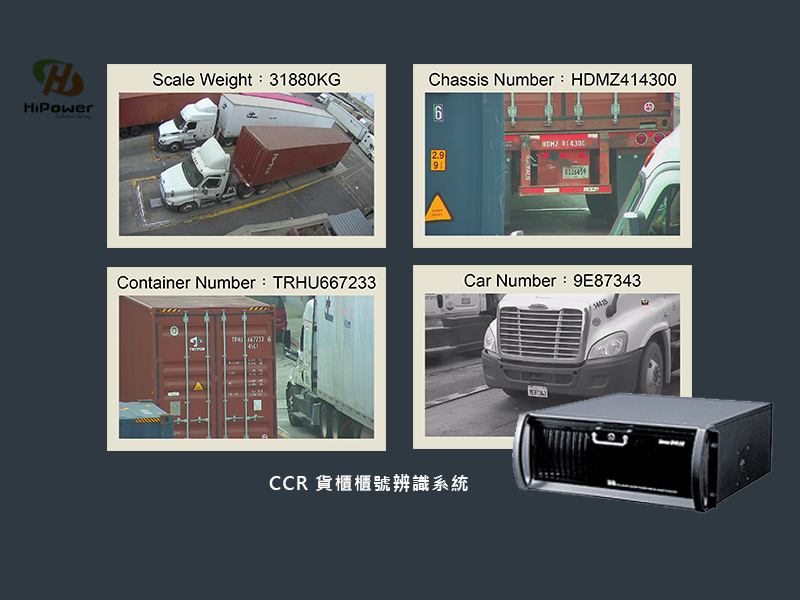

Container Code Recognition(CCR)
a. Container truck license plate recognition
b. Rear container number recognition
c. Front container number recognition
d. Vehicle detection and positioning
2.The web system host includes data transmission integration communication.
3.The vehicle data workstation allows security personnel to confirm the container number data of weighed vehicles and send it to the system.
Reported Information
Event Category,Occurrence Time,Lane of Occurrence,Vehicle Type,Camera IDReal-time Event Image Display (Event location will be indicated on the screen).
Event Recording Data
Configurable by the Image Event Detection Workstation to record 1 to 3 minutes prior to the event.Configurable by the Image Event Detection Workstation to set event recording time, with a maximum setting of up to 4 minutes.
Input image format and event recording format: 1280x720 pixels or higher, color, at least 30 FPS, supporting H.265 and H.264 compression formats, and single-frame playback.
Hardware Status Detection and Reporting
Capable of detecting the status of the image analyzer and camera image loss.Real-time status reporting when there is a change in hardware status.
Can immediately report hardware status upon query command.
System Time Calibration
Automatically calibrates system time via network with the time calibration system computer.Hardware Abnormal Recovery
Remote communication reset can be performed by the Image Event Detection Workstation.Remote hardware reset is possible, and memory data will not be cleared during reset.
In the event of a power outage followed by restoration, the system will reboot, automatically initiate the initialization process, and resume normal operation.
Equipped with a Watch-Dog for automatic initiation of the initialization process.
After the initialization process is complete, it will automatically report to the central server. If there is abnormal data, the central server can be requested to download relevant configuration data.
Data Storage and Protection
Each piece of data (including event images) can be stored on the frontend for at least 7 days (inclusive).(Each camera records events for 4 minutes each time, up to 10 events per day)Data can be stored on the frontend in case of communication disconnection.
Event image displays will indicate the event location.
Even when disconnected from the Image Event Detection Server, the image analyzer will continue to store event data (including images).
Upon reconnection with the Image Event Detection Server, it will automatically supplement event data and images stored during the disconnection period.
| Operating System | Processor | Memory | Network | Graphics Card | Screen Output | Hard Drive | Watchdog | Others | Place of Manufacture |
|---|---|---|---|---|---|---|---|---|---|
| Windows 10 Pro 6464-bit above | 2.4GHz or above. | 64GRAM | - RJ-45, 2x 100/1000Base TX Ethernet network interfaces (no other interface conversions). - Complies with IEEE802.3/Ethernet 100Base-TX and IEEE802.3/Ethernet 1000Base-T standard specifications, with bandwidth of 100/1000Mbps, capable of automatic switching. - Each set of network interfaces can be configured with a different IP Address. |
Independent graphics card with memory of 10GB or above. | One each of VGA and HDMI outputs. | Supports installation of up to 8 drives at 7200RPM, with a maximum capacity of 64TB. | Built-in hardware and software watchdog timer for monitoring. Operates independently (not the same unit as the central processing unit), capable of detecting CPU power abnormalities, software and firmware program anomalies, and resetting the system. |
- Equipped with power switch and reset button. - Shows power status, operation mode, communication faults, sensor abnormalities, etc. |
Made in Taiwan. |
-
Catalog Download on May, 2023
Container Code Recognition(CCR)
Application Actual Cases
Factory Area Vehicle Access Control Management
CCR Container Number Recognition System
Guidance for Container Parking Area
CCR Container Number Recognition System
Confirmation of Container Installation on Ship
Container Distribution Center Warehouse Management - Crab-carrying Container Trucks
Container Code Recognition system
CCR Systems
HiPower provides professional AIOT comprehensive solutions.
We integrate image detection and analysis technology, optical sensing signals, and IO control linkage design.
We also employ various technologies such as WEB cloud platform communication specifications and user interface integration components.
Based on the specific requirements of different industries, we offer customized decision-maker analysis management systems to our clients. Additionally, we provide application solutions for various industries.
Our goal is to combine cloud application system platforms to deliver advanced decision-maker analysis management systems that meet the needs of our customers
