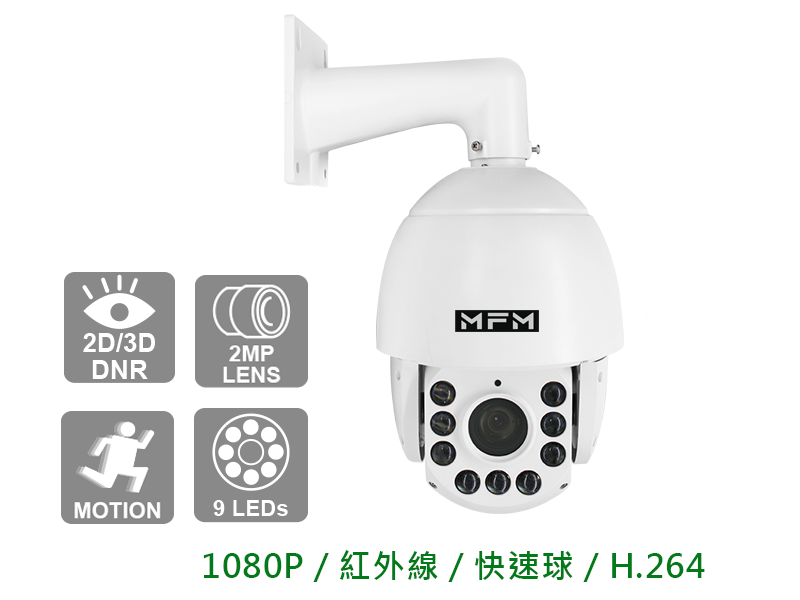

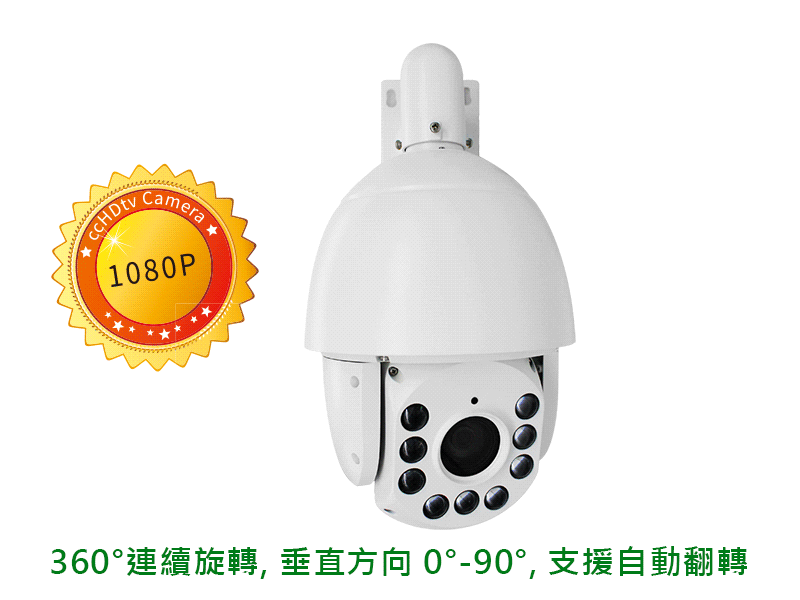

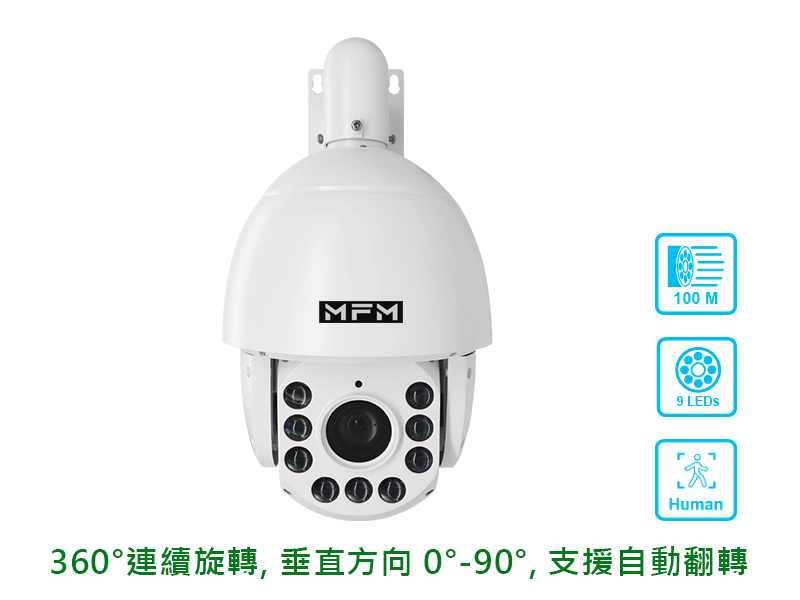

PTZ_CAM High-Speed Dome Camera
Camera
1080P / Infrared / PTZ / H.264
〉High-resolution video transmission at 1080P (1920 x 1080).
〉Up to 30x optical zoom and automatic focus.
〉Various functions and operations can be conducted using the same transmission line.
〉IR LED automatically switches between near and far distances.
〉Built-in multiple image processing functions such as DIS, WDR, Defog, Freeze, Privacy, Motion, Slow Shutter, and more.
〉When there is motion in the image, it can track the movement direction of objects and follow them until they disappear from the frame.
Image Processing Features
Digital Zoom 〉Monochrome: 0.05Lux @ 1/30Sec, F1.6, 50IREShutter/Synchronization Mode 〉Off/On(16X)
AGC 〉Auto/Flicker/Manual(1/25,1/30 ~ 1/30,000)
Sensitivity Multiplication 〉x0 ~ x20
Brightness 〉xX0 ~ x10
White Balance 〉AUTO / Acutest / Preset / Manual
Noise Reduction 〉2D、3D
MIRROR 〉Horizontal flip, Vertical flip, Rotation
SHAPNESS 〉0 ~ 10
Backlight Compensation 〉WDR、BLC、HSBLC(High-Speed Backlight Compensation)
Special Functions 〉 Defog、DIS、MOTION、FREEZE、Day/Night PRIVACY、Slow-Shutter
Lens Specifications (Zoom Lens)
Optical Zoom Ratio 〉30XFocal Length 〉4.3~129.0mm, Auto Focus
Minimum Focus Distance 〉1 meter
Aperture (F-value): F1.6(wide) – F5.0(Tele)
Aperture Range: F1.6 ~ F28, CLOSE
Field of View: Wide Angle 65.1°(horizontal) x 38.4°(vertical); Narrow Angle 2.34°(horizontal) x 1.36°(vertical)
| Color Mode | Scanning System | 有Effective Pixels (Horizontal x Vertical) | Resolution / Illuminance | Compression Format | Video Signal Output Specification | Maximum Number of Channels | Output Connector | Control Method | Environmental Temperature and Humidity | RF Remote Control Function |
|---|---|---|---|---|---|---|---|---|---|---|
| Color (Day) / Black and White (Night) Automatic Switching | 1/2.8" 2MP Sony Starvis CMOS sensor | 2M pixels (1920 X 1080) | 1080P30 (NTSC) / 1080P25 (PAL) Output Color: 0.2 Lux @ 1/30Sec, F1.6, 50IRE |
H.264 (1920 x 1080) @max. 30fps , MPEG2-TS | Compatible with DVB-T Digital TV Transmission Standard (ETSI EN 300 744) | One 5C2V coaxial cable, up to 16 channels | BNC | Uses RF bidirectional control technology (same cable as video signal) | -20°C to +50°C / 0% to 90%RH | Speed Dome / OSD MENU Full Function Control (Compatible Keyboard: KB-100) |
| Default Time | Horizontal Speed / Vertical Speed | Horizontal Rotation Range | Tilt Rotation Range | Default Position | Default Position Accuracy | Alarm | IR LED / Distance | Fan | Power / Power Consumption | Protection Level |
| Greater than 1 second | 240°/S ；180°/S | 360° continuous rotation | 0°~90° | 256 (Max.) | ±0.01° | 1 input, 1 output (optional) | 9 high-power infrared lights / 100 meters (Max.) | Temperature-controlled rotation | AC24V@3A / 40W (Max.) | IP66, all-weather protective cover, built-in fan, all-weather monitoring, 3000V lightning protection, surge protection. |
-
Catalog Download on May, 2023
