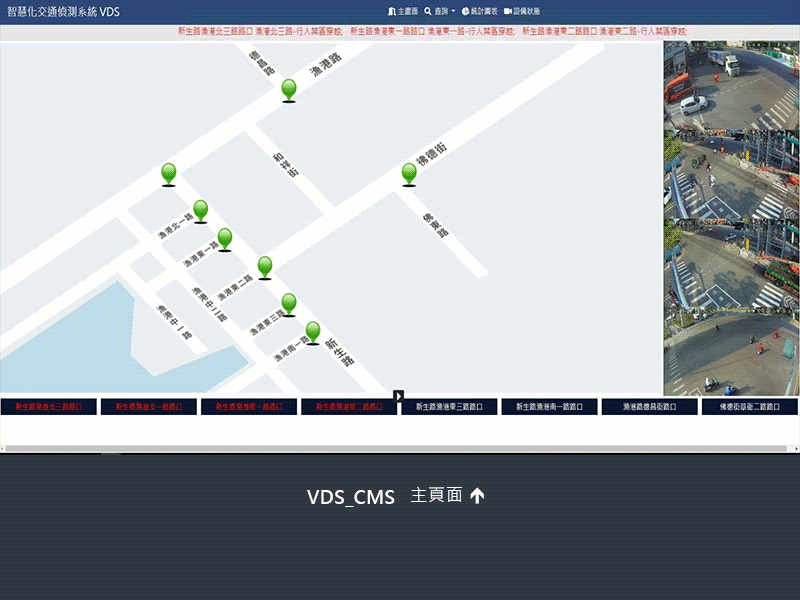

VDS_CMS Vehicle Detection Management Server
Vehicle Detection System(VDS)
(2) It is capable of processing real-time images and detecting spatial density within the real-time detection area at least once per second (ranging from 0% to 100%). It then transmits this value to the congestion detection controller and generates logs.
(3) It can provide information on vehicle waiting events within the detection area, including the accumulated waiting time, to the congestion detection controller and generate logs.
(4) The detection unit's detection area can be planned according to each detected lane, and settings within the detection area can include values for vehicle congestion saturation space, waiting event detection, and cumulative event duration.
(5) The detection unit's detection area must be capable of detecting congestion spatial density, waiting events, and vehicle type analysis including large vehicles, small vehicles, motorcycles, etc. Additionally, it should encompass the detection of multiple vehicle waiting events within the detection area and statistical tracking of event duration.
(6) It provides real-time images in H.264 format, with a minimum resolution of 704×480 pixels, at a rate of at least 5 frames per second (5 FPS) or higher. The provided real-time images must display the real-time detection area and its status.

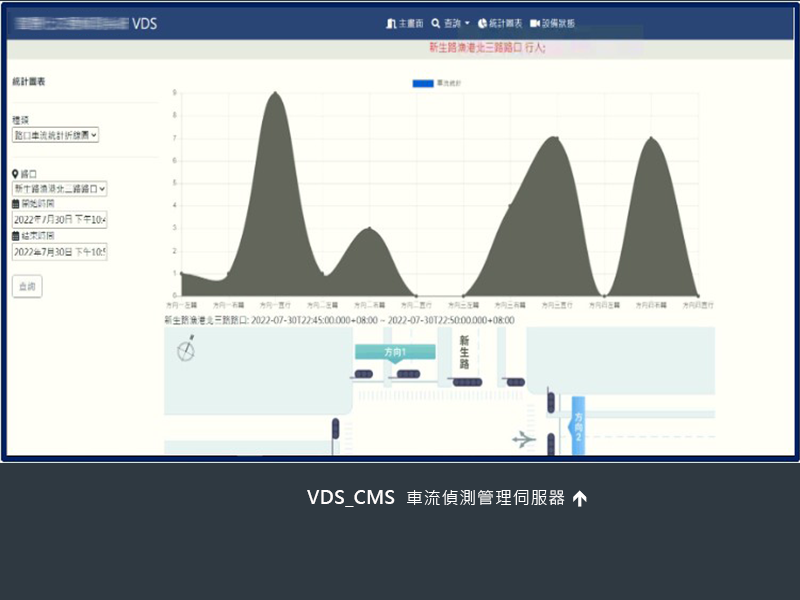

Event Retrieval and Inquiry Display
Directly access stored event information and event images.Display event information and event images reported by the AI image recognition module.
Web-based permission password login for viewing real-time camera feed.
Event Alarm Functionality
The system can display real-time abnormal event information and event image on a proactive basis.The system can mark the event's location on the real-time image for easy monitoring by operators.
Event Recording Time Settings
Set for a period from 1 minute before the event to 3 minutes after.Maximum setting duration can be up to 4 minutes.
Real-time Event Alarms
Receive events in real-time and issue audible alerts to notify operators to monitor the event location. The audible alert can be set to activate or deactivate.Other Features
View real-time status of remote image analyzers and display camera image loss.Achieves recognition accuracy of 85% during daytime and 80% at night.
Time Correction Functionality
The system has a web-based architecture and provides a minimum of 5 simultaneous online authorizations.Devices can automatically correct system time through network transmission with the central computer.
Abnormal Retrieval Playback
Displays and records device abnormal disconnection status alarms.During abnormal alarm events, the system has functions for event inquiry and event recording retrieval playback.
Data Storage and Protection
In case of connection interruption, detection data can be stored on-site.Supports traffic data integration into the new generation intelligent transportation system platform through Urban Traffic Control Communication Protocol V3.0.
| Operating System | Central Processing Unit | Memory | Storage | Disk Controller | Transmission Interface Unit | Cooling Fan | LCD Panel Cover | Other Management Features | Power Supply | Casing or Enclosure |
|---|---|---|---|---|---|---|---|---|---|---|
| Windows Server 2019 or above, with 5 CAL licenses | Intel Xeon Silver 4309Y 8-core processor x2 | 32GB DDR4 RAM or higher, supports up to 32 memory slots | Hot-swappable SSD 600GB*3, supports up to 24 2.5-inch slots | 12Gb/s SAS interface*1, supports Non-RAID or Pass Through | USB 3.0 *3, built-in Micro USB management port *1, HDMI *1, 1GBase-T *2, supports up to 8 PCIe expansion slots | Supports hot-swapping and redundancy/td> | Bezel with hot-swap function, operation buttons for setting management control chip IP Address, and can display system status and error information. | . Wireless network connectivity . Capable of managing server hardware, system health status, and error messages for mobile devices . Includes KVM function for remote management |
Dual power supplies, supports hot-swapping and redundancy | Standard 19-inch 2U rack-mounted server, including mounting kit. |
-
Catalog Download on May, 2023
