Rockfall Oscillator

XO_SR

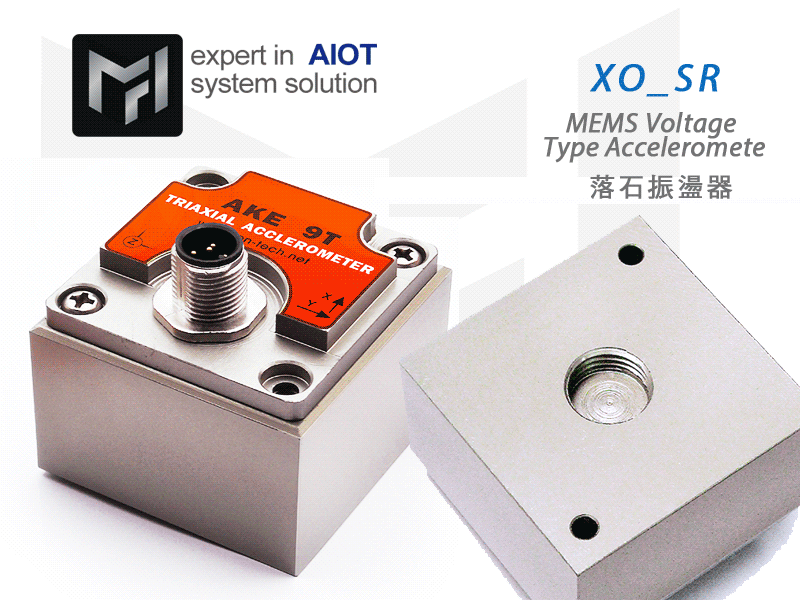

Triaxial Accelerometer

〉The triaxial accelerometer is applicable in various fields such as vibration testing and impact testing.
〉It utilizes a digital interface output, with options for RS232/RS485/TTL. Different address codes can be set, allowing for multiple sensors to be daisy-chained for multi-point measurement and data analysis.
〉It is composed of a single crystal silicon capacitive sensor, a low-power ASIC for signal conditioning, a microprocessor for storing compensation values, and a temperature sensor, all processed through micro-machining.
〉This product has low power consumption, is calibrated, and features a sturdy structure with stable output. The new electronic configuration provides solid-state power for reset and comprehensive protection against overvoltage.
〉The long-term stability of the scale factor within the full-scale range is less than 0.1%.
〉This product boasts a sturdy structure, low power consumption, and excellent deviation stability, ensuring the reliability of the output.

Model: XO_SR-02 / XO_SR-18 / XO_SR-50

Category: Rockfall Oscillator

Tag: Rockfall Sensor,Rockfall Oscillator，Triaxial Accelerometer

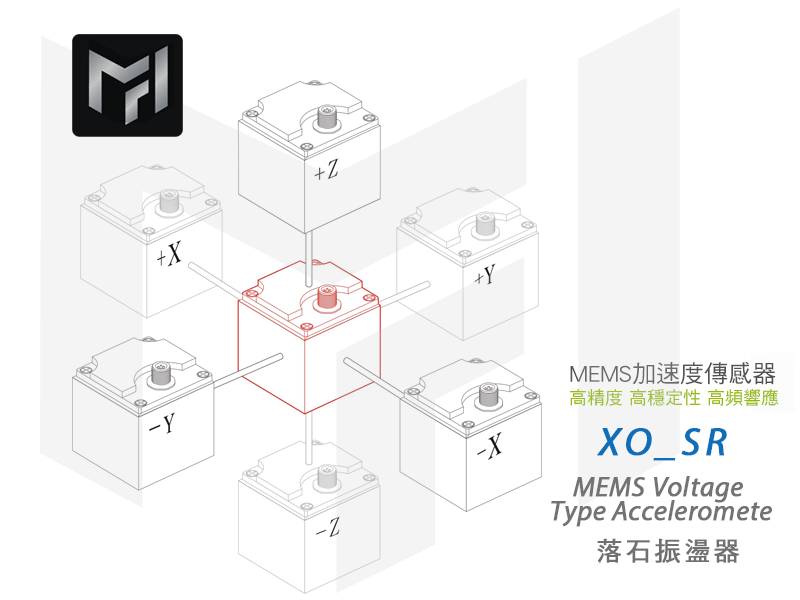

Triaxial (X, Y, Z)
Output Signal: RS232 / RS485 / TTL
　　
Supply Voltage: 9 - 36V
Selectable Measurement Ranges: ±01G；±02G；±04G；±08G；±16G；±32G；±40G 　
　
Shock Resistance：2000G
Excellent Environmental Performance (Shock, Vibration, and Temperature) 　
　
Dimensions：L50×W50×H38mm
Operating Temperature：-40°C to +85°C 　
　
Storage Temperature：-55°C to +100°C

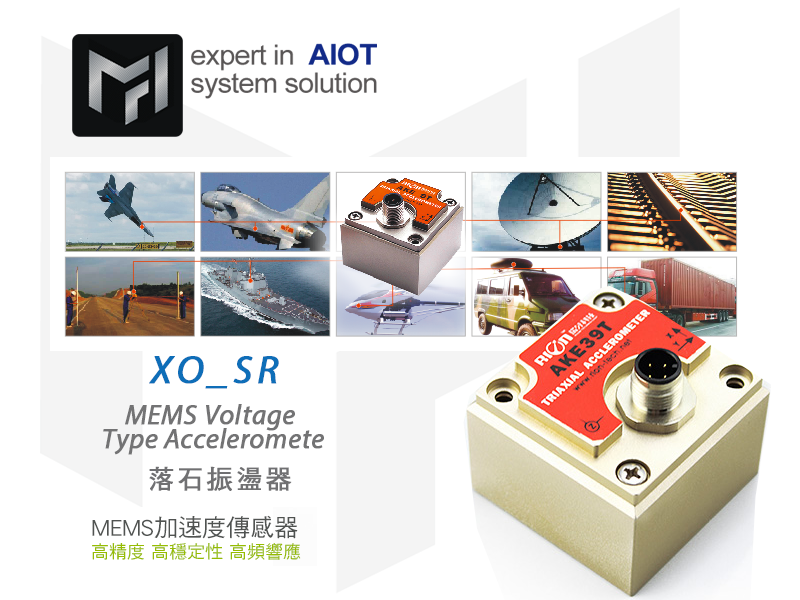

Applications：
Free Fall Logging, Fatigue Monitoring and Prediction Shipborne Satellite Tracking Systems Traffic System Monitoring, Roadbed Analysis, and High-Speed Railway Fault Detection Military and Civilian Flight Simulators Low-Frequency Vibration and Automated Monitoring


Model Measurement Axis Range Bias Calibration Yearly Bias Stability Power-On / Power-Off Repeatability Bias Temperature Coefficient Resolution / Threshold (@ 1Hz) Non-Linearity Bandwidth Resonance Frequency Output Rate
XO_SR-02 / XO_SR-18 / XO_SR-50 X,Y,Z ±2 / ±18 / ±50 g Less than 2 / Less than 5 / Less than 10 mg 0.1 / 0.5 / 1.5 mg/°C (typical) Less than 10 / Less than 10 / Less than 20 mg (max) 0.1, ±1 / 0.5, ±5 / 1.5, ±30 mg/°C (max) Less than 1 / Less than 5 / Less than 15 mg (max) Less than 0.1% FS, Less than 0.02g / Less than 0.5% FS, Less than 0.09g / Less than 0.6% FS, Less than 0.27g 0~≥400Hz 1.6 / 6.7 / 6.7 kHz Selectable: 5Hz, 15Hz, 35Hz, 50Hz, 100Hz, 300Hz
Output Interface Reliability Shock Resistance Recovery Time Vibration LCC Package Input (VDD_VSS) Operating Current Consumption Weight Dimensions
RS232 / RS485 / RS422 / TTL MIL-HDBK-217，Level II 100g @ 11ms, three axes simultaneously (half sine wave) Less than 1ms (1000g, 1/2 sin 1ms, applied to i-axis) 20g rms, 20~2000Hz (random noise, o, p, i applied to each axis for 30 minutes) Compliant with MIL-STD-833-E 9-36 VDC Less than 60mA @ 12 VDC Typical: 100g Typical: L50×W50×H38mm
