eTag

RFID_etag

T9662

〉Application of electronic tags: With a 64-bit ID, it can provide sufficient reflection signal for reading the tag over a larger range even at low power levels.
Frequency: 840～960Mhz

Model: RFID_etag

Category:: RFID eTag

Tag: RFID eTag, eTag

Standard Communication Protocol: EPC global Class 1 Gen 2 (ISO/IEC 18000-6C)
EPC Memory Bank: 96 bits
　　
User Data Bank: 512 bits
Unique TID ：64 bits 　
　
Kill Password ：32 bits
Access Password ：32 bits 　
　
Data Rewrite Cycle: 100,000 times
Data Retention Time: 50 years 　
　

Label/Transmission Protocol Operating Frequency Material Labeling Method Chip Data Rewrite Cycle EPC Memory Bank User Data Bank Unique TID Unique TID Unique TID Read Distance Operating Temperature Data Retention Time Dimensions Weight

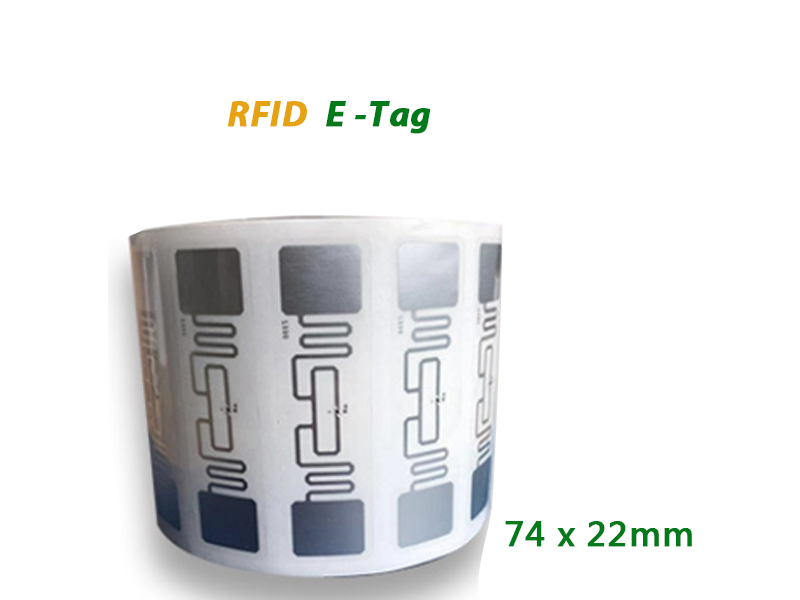

EPC global Class 1 Gen 2 （ISO/IEC 18000-6C） 840～960Mhz PVC & Aluminum Etching Self-adhesive Alien H3 100,000 times 96 bits 512 bits 64 bits 32 bits 32 bits 0-12m (Fixed Reader, P=30dBm, G=12dBi) -40℃–+70℃ 50 years 74mm*22mm 0.01g
