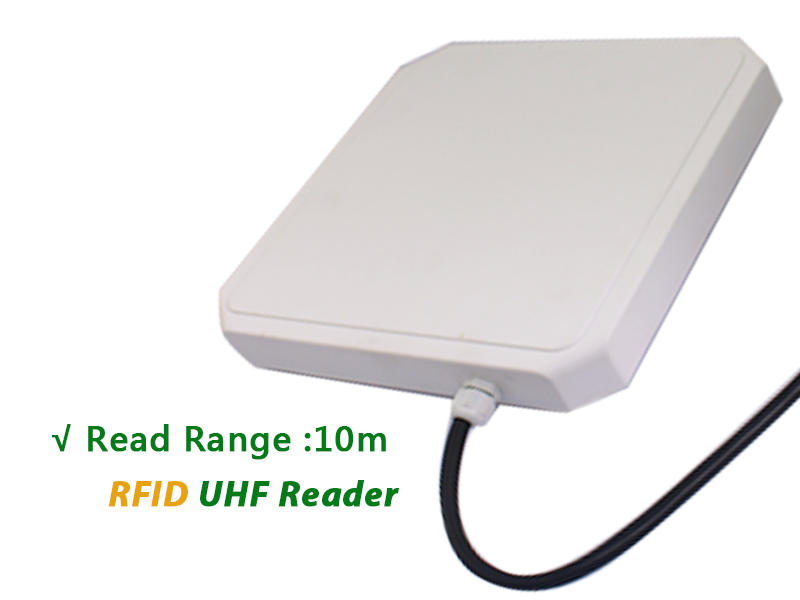

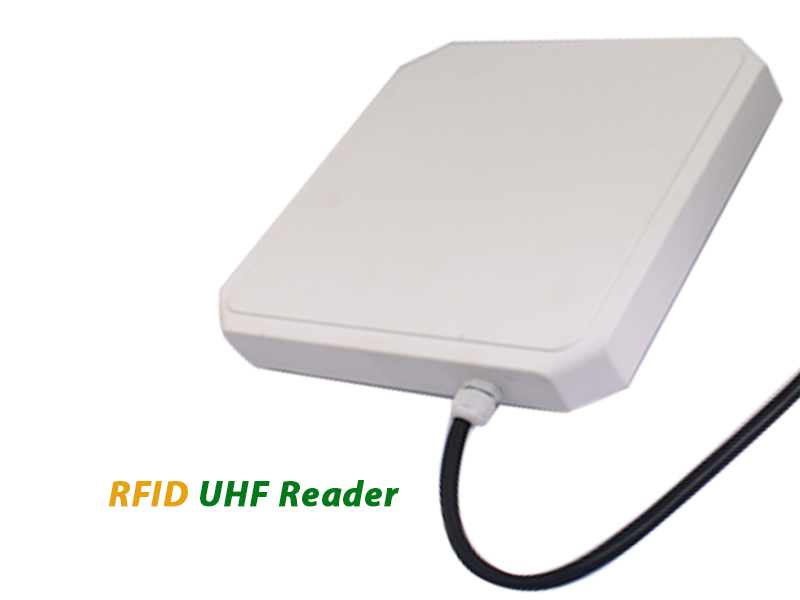

UHF Integrated Reader

RFID

Integrated Design

〉The UHF integrated reader is a cost-effective RFID reader with a one-piece design for easy and quick installation, reducing wiring. It features a built-in high-power UHF module with strong anti-interference technology. While maintaining a high read rate, it can also quickly read and write electronic tags, making it suitable for various industrial environments. Widely used in logistics, access control systems, anti-counterfeiting systems, and production process control, among many other wireless radio-frequency identification (RFID) systems, it is the best choice for RFID reading and writing equipment.

Model: RFID_01

Category: RFID Reader

Tag: RFID Integrated Reader,RFID Reader

Tag/Transmission Protocol: EPC Class 1 Gen 2 (ISO 18000-6C)

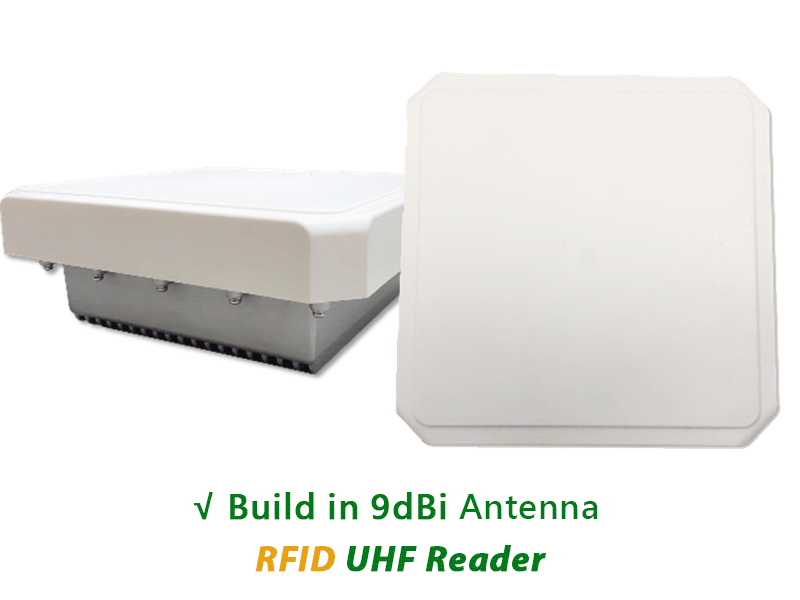

RF Interface - Antenna Connection: Equipped with a 9dBi antenna.
RF Output: 5dBm to 30dBm (1W), adjustable within +/-1.0dBm.
Frequency Range: FCC (USA) 902-928MHz, SRRC-MII (China) 840-845MHz, 920-925MHz, ETSI (Europe) 865-867MHz.
　　
Communication Interface: 10/100 Base-T Ethernet interface, Wiegand 485.
DC Power Supply: 12V, 3A power adapter. 　
　
Dedicated Chip: QM100.
Tag Cache: 100 Tags. 　
　
Tag Reading Rate: >50 tags/s.
Reading Distance: Within 10 meters. 　
　
Operating Temperature: -20°C to +60°C / Storage Temperature: -40°C to +85°C.
Dimensions: Length 255mm × Width 255mm × Height 42mm. 　


Tag/Transmission Protocol Antenna Connection RF Output Frequency Range Communication Interface Power Supply Tag Cache Tag Reading Rate/th> Reading Distance Operating Temperature Operating Humidity Dimensions
EPC Class 1 Gen 2（ISO 18000-6C） 9dBi antenna configuration Adjustable from 5dBm to 30dBm (1W), +/-1.0dBm FCC (USA) 902-928MHz, SRRC-MII (China) 840-845MHz, 920-925MHz, ETSI (Europe) 865-867MHz 10/100 Base-T Ethernet interface, Wiegand 485 12V, 3A power adapter 100Tags >50tags/s Within 10 meters -20°C to +60°C -40°C to +85°C Length 255mm × Width 255mm × Height 42mm
