Infrared Illuminator

IR_LED

Infrared

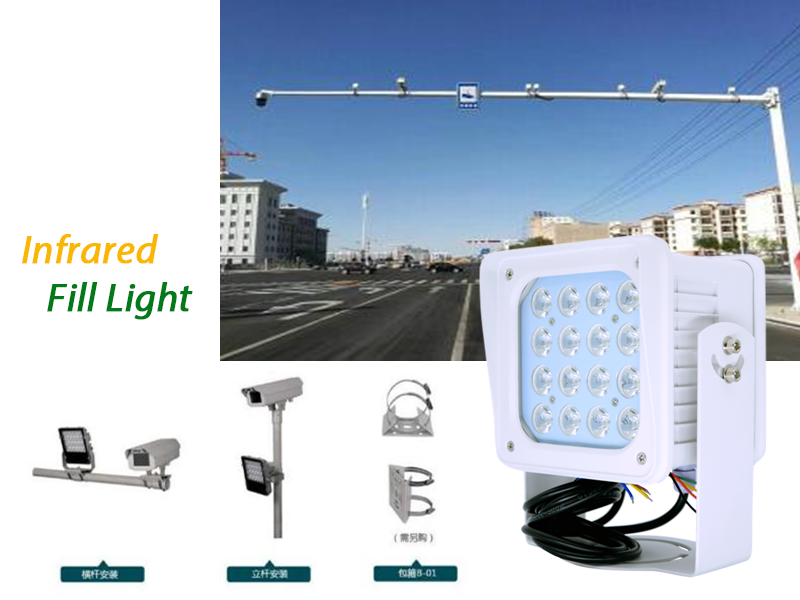

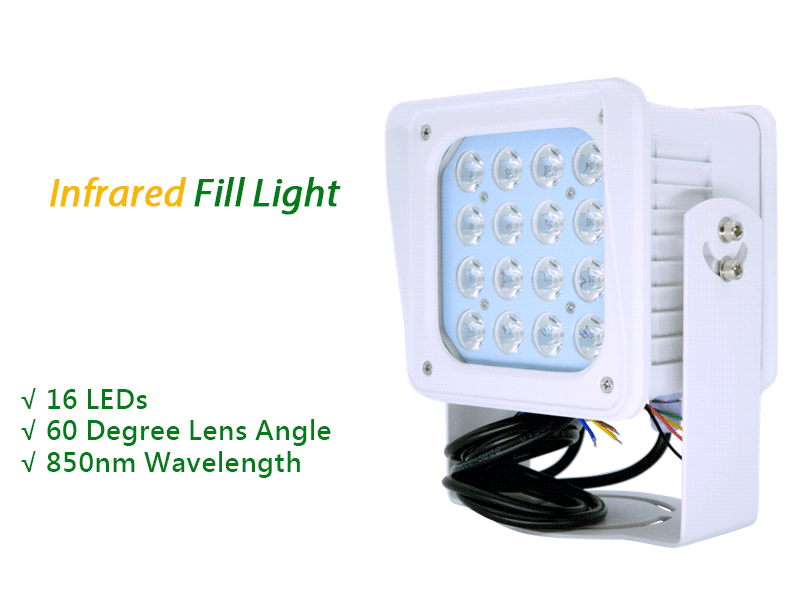

〉The IR_LED Infrared Illuminator is a compact and easy-to-install night vision monitoring supplementary light. It provides white light night vision effect within a range of 130 meters and offers beam projection modes at different angles. It adopts imported high-power (array) LED light source, driven by a dedicated constant current and constant voltage circuit, combined with secondary optical angle design to effectively address the shortcomings of traditional LEDs such as short irradiation distance and short lifespan.

Model: IR_LED

Category:: IR_LED Infrared Illuminator

Tag: IR LED, IR_LED Infrared Illuminator

Ensuring the camera acquires high-quality night vision images, reducing network bandwidth requirements, minimizing imaging lag, and frame loss.
Low power consumption, high efficiency, and long lifespan.
　　
Effective waterproof and dustproof capabilities, meeting the demands for prolonged outdoor operation, making it suitable for installation and use in damp and rainy environments.

LED Quantity IR Wavelength Power Control Method Illumination Distance Lens Angle Operating Voltage Environment Temperature Operating Humidity Protection Level Housing Material Weight Packaging Appearance Size Applicable Range

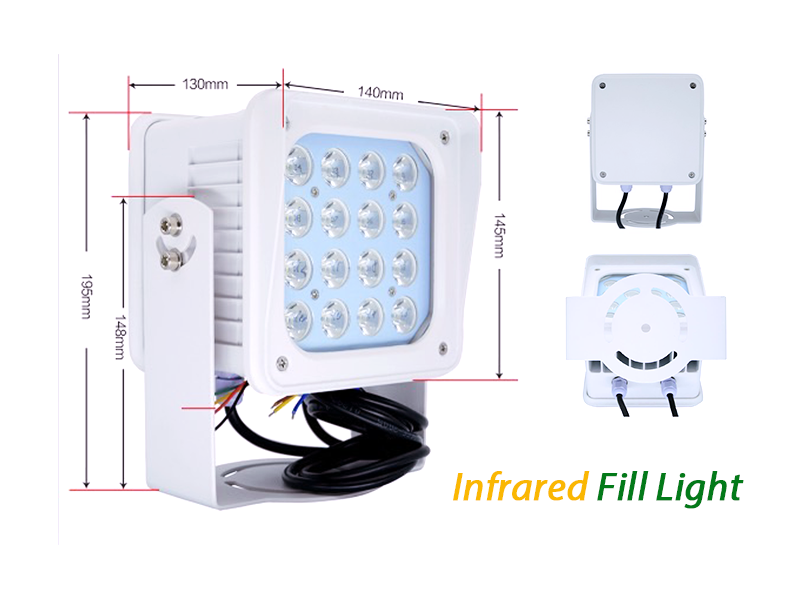

16 pieces of original imported infrared light beads 850nm 48W I/O switch trigger 130 meters (depending on the lens angle) 60° AC 110-220V -35℃~80℃ 10%~90% Shell protection level IP66 Die-cast aluminum + acrylic panel Net weight of the product: 2.5 Kg Corrugated carton + pearl cotton Dimensions: 190x130x130mm (including bracket size) Suitable for electronic police, road violation video recording, and capture applications.
  • Related Downloads
    Catalog Download on May, 2023
