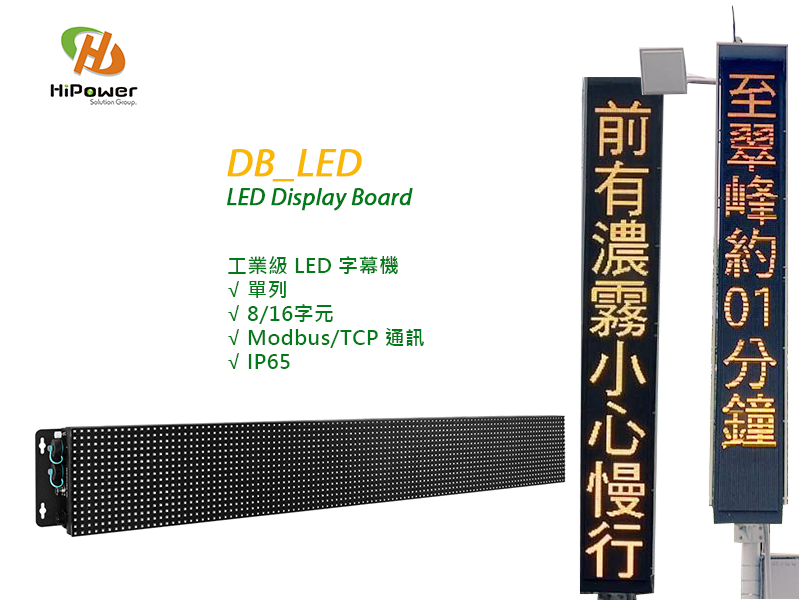

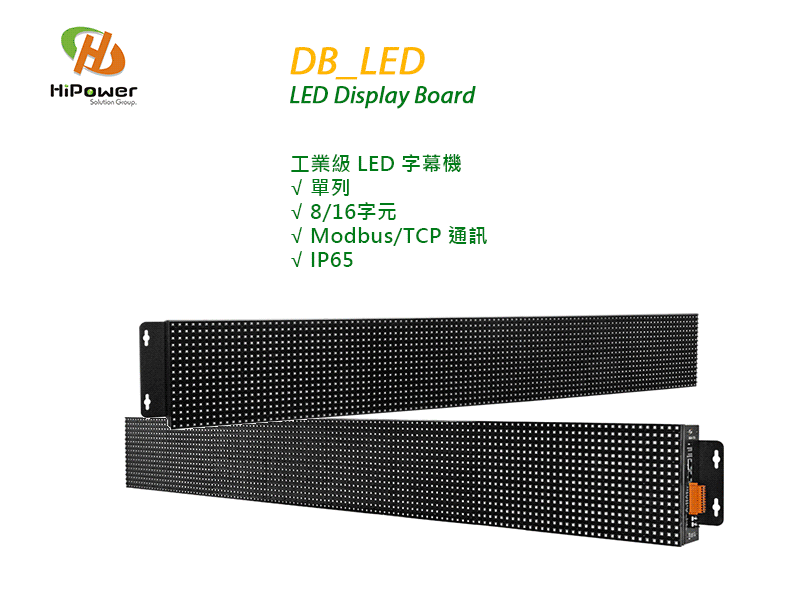

DB_LED LED Subtitle Display Device

Outdoor type

Single column, 8/16 characters, industrial grade LED subtitle machine, Modbus/TCP communication, IP65

〉Industrial grade high brightness Modbus LED subtitle machine, with industrial-grade noise resistance and reliable stability, supports the widely used Modbus communication protocol in the field of industrial automation, easy to communicate with various industrial control equipment, and PLC, HMI, SCADA and other control systems to integrate

Model: DB_LED

Category: LED Subtitle Display Device

Tag: Outdoor type LED subtitle machine, industrial grade high brightness LED subtitle machine

Allow integration of both regular text and variables within a single message.
Support multiple languages, with a text height of 16 cm.
128 slots for pre-stored text messages, with adjustable priority.
Available in 7 colors, including red, blue, yellow, green, light blue, purple, and white.

Size Font Format Color Data Pool Message Pool COM Ports Baud Rate Data Format Communication Protocol Ethernet
Number of Rows: 1
ASCII Characters: 16
Unicode Characters: 8		 16 x 16 Unicode or 8 x 16 ASCII Red, Blue, Yellow, Green, Sky Blue, Purple, White 40 Coil Variables, 64 Integer Variables, 64 Floating-Point Variables 128 text messages with adjustable priorities, each message can be up to 20 Unicode characters (including Chinese characters) or 50 ASCII characters 2 × RS-485 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 N81, E81, O81 Up to 8 Modbus TCP Master connections, 8 Modbus TCP Slave connections 2 × RJ-45, 10/100 Base-TX
Power Input Range Power Consumption Casing/Enclosure Dimensions (mm) Installation Weight Operating Temperature Storage Temperature Humidity
100 ~ 240 VAC 0.3 A @ AC 120 V Aluminum 1347 x 160 x 81 (W x L x D) Wall Mounting Installation 4.6 Kg 0 ~ +60°C -10 ~ +75°C 10 ~ 90% Relative Humidity, Non-condensing
