Dual-Lens Thermal & Full-Color Camera

Industry-Specific IP Camera

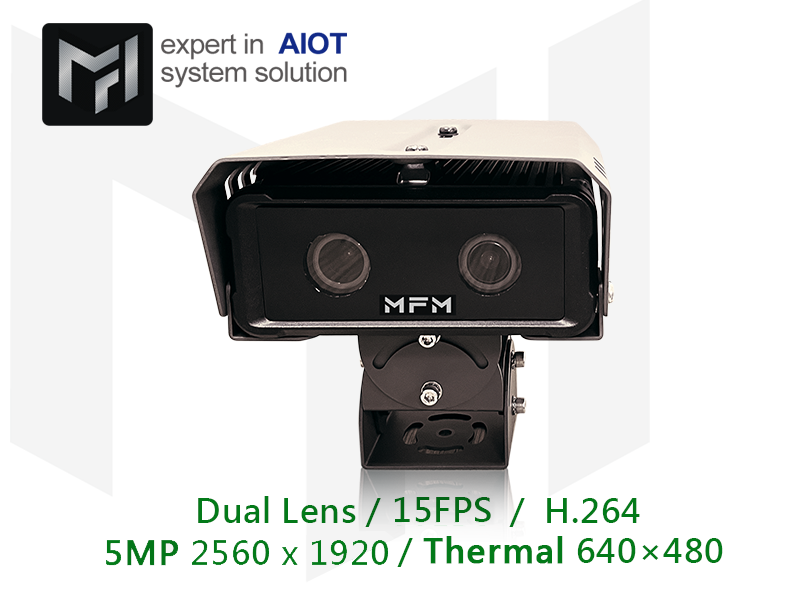

Dual-Lens，5MP+D1/ 640x480P+1920P / Fixed Focal+5.0~50 Lens / H.264 / Thermal

MIT Taiwan Manufacture, Original Technical Installation, Quality Safe and Reliable. ￭ Supports H.264 and M-JPEG compression formats.
￭ Each camera can output at least two types of video streams simultaneously, H.264 and M-JPEG.
￭ Each video stream can be individually set to different image resolutions:
￭ 5 MP (640×480, 1280×720, 1920×1080 ,2560×1920pixels).
￭ D1(640×480 pixels) with frames per second options.
￭ Each video stream can support at least five client connections.
￭ Image bandwidth ≤3Mbps. When set to H.264 1080P 15FPS, there is no image delay or object blurring phenomenon under environmental traffic conditions.

Model: MFM_50TD

Category: Dual-Lens Thermal & Full-Color Camera

Tag: Dual-Lens Thermal Camera, CCTV, IP network camera, Full-Color Camera

Automatic Gain Control (AGC).

Backlight Compensation.

Automatic White Balance.

Wide Dynamic Range (WDR) function with 120dB at 15 FPS. 　

Night noise suppression function. 　

Nighttime shooting with automatic aperture adjustment. 　

Stable image quality during low-light shooting at night under stable external light conditions, ensuring no flicker or color rolling, and clear nighttime images 　

Application Scenes
Traffic, Government Buildings, School Entrances, Hospital Entrances, Industrial Factories, Mall Entrances Applications：
Environment Detection
-Fire Prevention Warning Detection
-Boundary Fence/Perimeter Intrusion Detection
-Industrial Temperature Detection
-Area Intrusion Detection
-Behavior Detection
-Fall Detection / Movement

Chip	MAX Resolutions	Maximum Frame Rate	Focal Length	Minimum Illumination	Interface	Network Protocols	Casing	Shutter Time	Operating Temperature	Humidity	ONVIF	Safety Certifications
Uses a CMOS 1/3” Image Sensor	5MP (2560×1920 pixels)，D1 (640x480 pixels)	15 FPS @2560×1920 ， 30 FPS @640x480	5MP lens ： 5-50mm±5%， D1 lens ： Fixed	Color： Below 0.06 Lux，Black：Below 0.02 Lux	RJ-45 cable connector for Network 10/100 Base-T	HTTPS, SNMP v3, 802.1X, IPv4/IPv6, HTTP, TCP/IP, UDP, RTP, RTSP, NTP (or SNTP), DHCP, ICMP, IGMP, and DNS.	Made of aluminum alloy metal. Waterproof rating IP-66 , IP67	1/60 sec to 1/8,000 sec	-10℃ to 70℃.	10% to 90%	ONVIF Profile S	FCC Part15 , EN 55024 , CNS 16120

Related Downloads

Catalog Download on May, 2024
