產品資訊

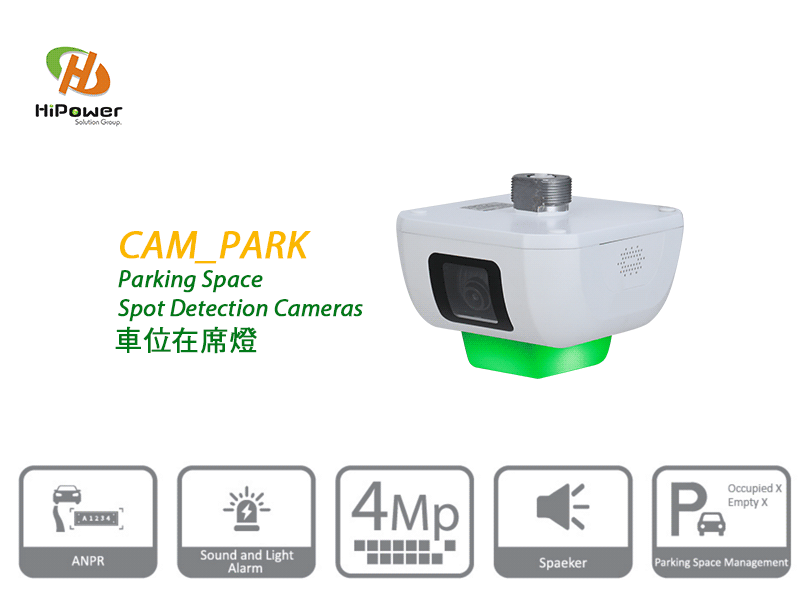

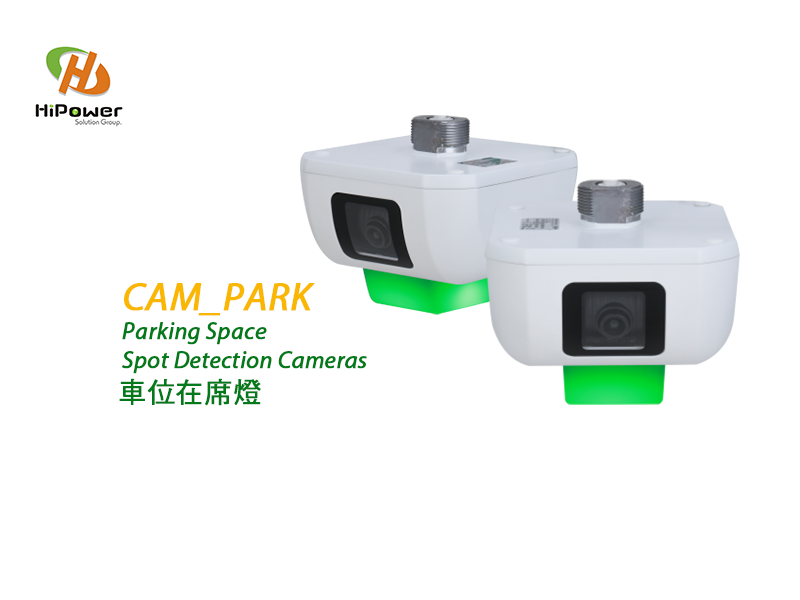

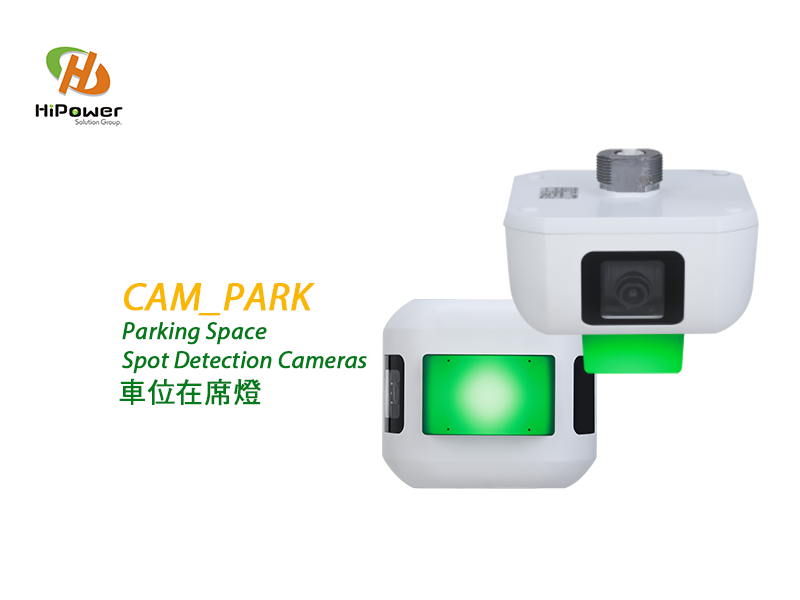

車位在席燈

CAM_PARK

停車場車位在席燈

〉Ideal for plate recognition and the detection of the status of parking spaces.
〉Connects to the intelligent parking lot management system.
〉Features line crossing detection, sound and light alarms, and detects when unauthorized vehicles are parked in restricted parking spaces.
〉Detects 6 parking spaces at the same time with a detection rate of over 99.5%. The plate recognition rate is over 99%.
〉Offers 7 colors to indicate the status of a parking space.
〉Supports H.264, H.265, and MJPEG flexible coding, and is applicable to various bandwidth and storage environments.
〉various bandwidth and storage environments.
〉Supports True WDR, 3D NR, HLC, BLC, and digital watermarking, and is suitable for indoor parking lots.
〉PoE power supply and standard 12 VDC.
〉 Electrically adjusts the vertical angle of the lens.

型號: CAM_PARK

類別: 停車場設備, 車位在席燈

標籤: 停車場車位在席燈, 車位在席感測燈

Real-time Monitoring of Parking Space Status
Seven Color Indicator Lights
PoE+ Power Supply
Wide Dynamic Range
Single Opening Time: Approximately 3-7 seconds, adjustable based on on-site requirements.
The gate arm's opening angle can exceed 90 degrees and can be adjusted to meet on-site needs.
　　
Equipped with safety features such as anti-pressure stop and ascent (optional).
Can be manually opened in case of power failure or abnormalities. 　
　
The electric motor has automatic protection against overload of rated power (optional).
Power Supply: Accepts 110/220V, 60/50Hz, compatible with the provided on-site power. 　
　
Can be controlled by a central computer.
Gate poles are affixed with red reflective stickers, providing nighttime warning effects. 　
　
The gate poles are made of aluminum alloy, crafted in a square shape measuring H100xW25mm, with lengths of up to 6 meters.
The main body is formed from high-tensile steel, ensuring robustness and durability (customizable based on on-site requirements). 　
　
Exterior features a blend of epoxy polyester resin coating, resistant to local acid rain, with an aesthetically pleasing dual-color finish.
Dimensions (mm): 400 (L) x 300 (W) x 1100 (H). 　
This equipment can be adjusted and configured appropriately based on actual on-site requirements. 　

Image Sensor Max.Detection Space Parking Space Indicator Image Resolution Video Resolution Noise Reduction WDR Video Compression Image Encoding Format
1/3" CMOS 6 1, 7 customizable colors (red, yellow, blue, green, cyan, white, and pink) 2688 (H) × 1520 (V) (OSD black background is not calculated in the pixels) 4 MP (2688 × 1520); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576) 3D NR 100dB H.265; H.264; MJPEG JPGE
Video Bit Rate Video Frame Rate Exposure Mode Field of View Lens Angle
PAL: Main stream (2688 × 1520@20 fps, 1920 × 1080@20 fps, 1280 × 720@20 fps), sub stream (704 × 576@20 fps)
NTSC: Main stream (2688 × 1520@20 fps, 1920 × 1080@20 fps, 1280 × 720@20 fps), sub stream (704 × 576@20 fps)		 Auto; Manual (select from shutter values or customize shutter range) H: 83.7° , V: 45.7° , D: 99.1° Adjustable (depression angle of 10°–34°)
Electronic Shutter Speed Power Supply Power Consumption Operating Temperature Operating Humidity Protection Product Dimensions Net Weight Gross Weight Lens
Auto/Manual 1/3 s-1/10,000 s PoE; 12 VDC Less than 12 W –20 °C to +50 °C (–4 °F to +122 °F) 10%–95% (RH), non-condensing IP54 120 mm × 136 mm × 105 mm (4.72" × 5.35" × 4.13") (L × W × H) 0.6 kg (1.32 lb) 0.8 kg (1.76 lb) 3.6mm
  • 相關下載如下
    型錄 Download on May, 2023
