5G_RT 路由器

網通設備

物聯網5G路由器/閘道器

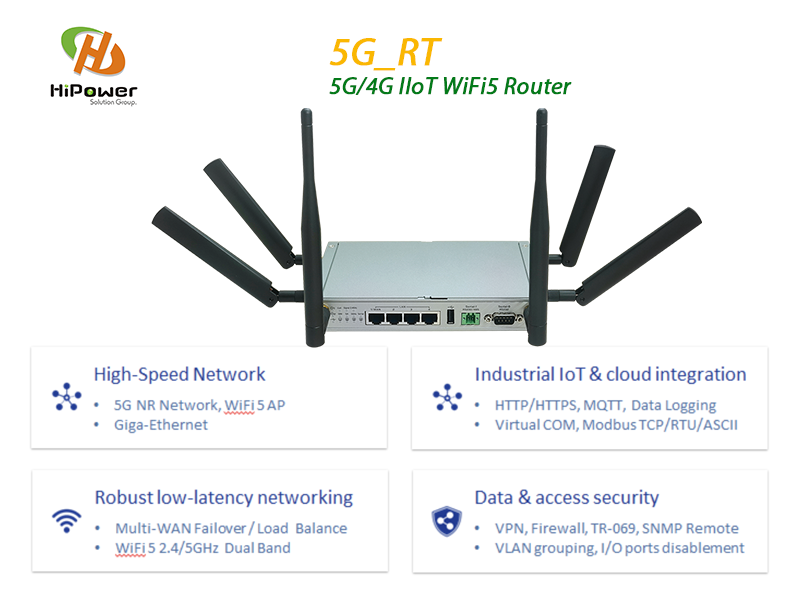

〉As 5G technology growing up, the next generation cellular 5G makes new features of the network with higher bandwidth and lower latency. 5G_RT is an IIoT gateway for 5G network. It has gigabit level via 5G and fixed ether-net. The 5G_RT is optimized to acquire, process and filter large amount of real-time data. It creates secure IIoT system and enables cloud integration providing full operational control over field devices from any place in the world. The cost-effective industrial network solution is easy to scale connecting wide range of assets as systems, logic controllers, actuators, and sensors.
• Dual SIM LTE , 1*Ethernet WAN
• 4*10/100/1000 Ethernet, WiFi5 DBDC 2T2R
• 1*RS232 Full + 1*RS232 Lite/485, 1*DI+1*DO
• 1*USB 2.0
• Metal Housing, DIN-Rail / Bracket
• DC TB Dual 9~36V , -30°C ~ 70°C

型號: 5G_RT

類別: 網通設備

標籤: 物聯網5G路由器, 5G/4G IIoT WiFi5 Gateway, 閘道器,IIOT Router

Dual SIM LTE , 1*Ethernet WAN
4*10/100/1000 Ethernet, WiFi5 DBDC 2T2R
1*RS232 Full + 1*RS232 Lite/485, 1*DI+1*DO
1*USB 2.0
Metal Housing, DIN-Rail / Bracket
DC TB Dual 9~36V , -30°C ~ 70°C

Applications：
IIoT/AIoT and networking System cloud integration Smart City and ITS Remote monitoring IT Machine Protection

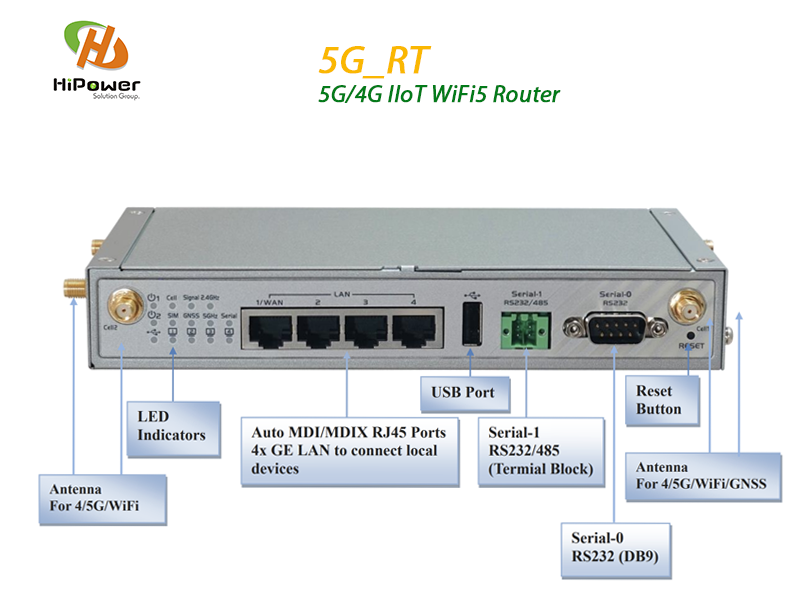

Device Interface 4G Module Ethernet WiFi Field Bus Log Storage I/O: Power Input Antenna Con.
1*5G NR / 4G LTE, 2*mini-SIM (2FF) 4*RJ45 GE Ports 1*2x2 2.4GHz 802.11 b/g/n , 1*2x2 5GHz 802.11ac 1*RS232(Full/DB9) + 1*RS-232(Lite)/485 (Terminal Block) 1*USB 2.0 Type-A 1*DI (Isolated, “Logic 0”: 0~2V, “Logic 1”: 5V~30V)
1*DO (Relayed Output, 30V/1A for each port)		 1* DC 9V ~ 36V (Terminal Block) 4*SMA (F)-5G/4G, 2*SMA (M)-WiFi
WAN & Uplink WAN Cellular Ether-WAN Network Monitor Standard Mode Functions Service
Cellular & Config. Ether-WAN; Failover, Load Balance 5G/4G, SA/NSA, IP Pass-through, IPv4/6 Dynamic IP, Static IP, PPPoE , PPTP, L2TP ICMP/DNS Query Standard: 802.11 Industry Compliance AP Router Multi-SSID, WMM Cellular Toolkit: Data Usage, SMS, SIM PIN, Network Scan
WiFi Mode Functions Security LAN & VLAN IPv6 Port Forward Routing OP/Storage Temp. Dimension
Standard: 802.11 Industry Compliance AP Router Multi-SSID, WMM WEP, WPA,WPA2, WPA-PSK, WPA2-PSK, 802.1x DHCP Server/Relay, Port/Tag based VLAN Static IPv6, DHCPv6 DMZ, Virtual Server & Computer, VPN Pass-through Static, Dynamic - RIP1/RIP2, OSPF, BGP -30°C ~ 60°C ; -40°C ~ 85°C 187x110x31mm (w/o mounting kit)
31x120x187mm (with DIN Rail kit)
225x110x 39mm (with Bracket kit)
  • 相關下載如下
    型錄 Download on May, 2023
